Intake

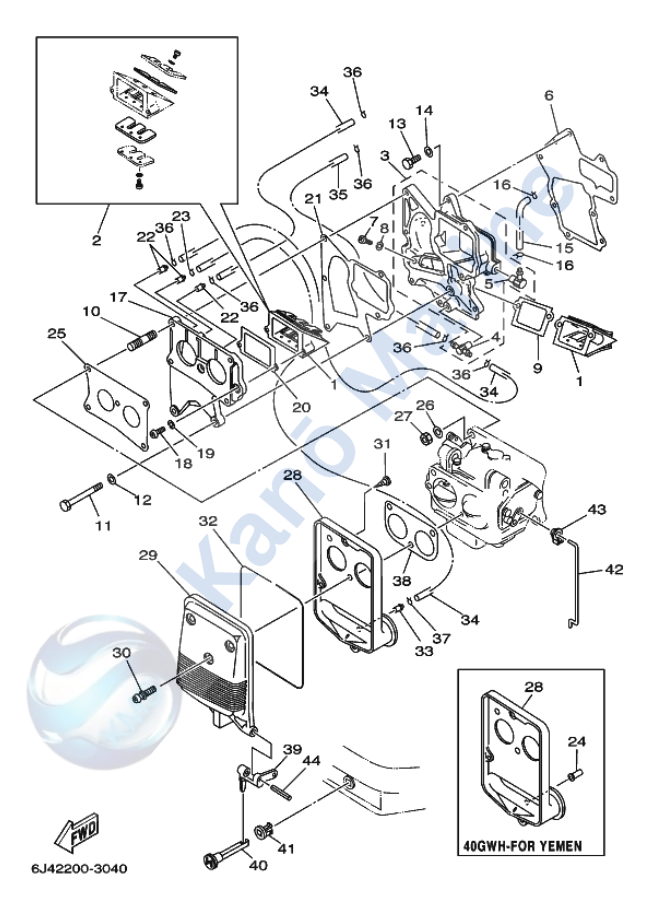

Exploded diagram and parts list for Yamaha 40HP Intake (E40GMHL – 2003)
Parts List
| Ref | Part No | Description | Qty | |
|---|---|---|---|---|
| 1 | 6F6-13610-00 | REED VALVE ASSY | Add to Inquiry | |
| 2 | 692-W0004-00 | REED SET | Add to Inquiry | |
| 3 | 6F6-13641-00-1S | MANIFOLD 1 | Add to Inquiry | |
| 4 | 6F6-11370-01 | CHECK VALVE ASSY | Add to Inquiry | |
| 5 | 650-11370-01 | CHECK VALVE ASSY | Add to Inquiry | |
| 6 | 6F5-13646-A2 | GASKET, MANIFOLD 2 | Add to Inquiry | |
| 7 | 97880-05014 | SCREW, PAN HEAD | Add to Inquiry | |
| 8 | 92990-05100 | WASHER, SPRING | Add to Inquiry | |
| 9 | 6F5-13621-A1 | GASKET, VALVE SEAT | Add to Inquiry | |
| 10 | 90116-06M17 | BOLT, STUD | Add to Inquiry | |
| 11 | 97013-06065 | BOLT | Add to Inquiry | |
| 12 | 92903-06600 | WASHER, PLATE | Add to Inquiry | |
| 13 | 97013-06025 | BOLT | Add to Inquiry | |
| 14 | 92903-06600 | WASHER, PLATE | Add to Inquiry | |
| 15 | 90445-07254 | HOSE (L118) | Add to Inquiry | |
| 16 | 90467-06016 | CLIP | Add to Inquiry | |
| 17 | 6F6-13643-01-1S | COVER, MANIFOLD | Add to Inquiry | |
| 18 | 97880-05014 | SCREW, PAN HEAD | Add to Inquiry | |
| 19 | 92990-05100 | WASHER, SPRING | Add to Inquiry | |
| 20 | 6F5-13621-A1 | GASKET, VALVE SEAT | Add to Inquiry | |
| 21 | 6F5-13645-A1 | GASKET, MANIFOLD 1 | Add to Inquiry | |
| 22 | 624-14485-00 | PIPE, JOINT | Add to Inquiry | |
| 23 | 90467-06016 | CLIP | Add to Inquiry | |
| 25 | 6F5-14198-A1 | GASKET | Add to Inquiry | |
| 26 | 92995-06600 | WASHER | Add to Inquiry | |
| 27 | 95380-06600 | NUT, HEXAGON | Add to Inquiry | |
| 28 | 6F5-14417-00 | COVER 1 | Add to Inquiry | |
| 29 | 6F5-14418-00 | COVER 2 | Add to Inquiry | |
| 30 | 90159-06M01 | SCREW, WITH WASHER | Add to Inquiry | |
| 31 | 97780-50716 | SCREW, TAPPING | Add to Inquiry | |
| 32 | 6F5-14476-00 | SEAL | Add to Inquiry | |
| 33 | 624-14485-00 | PIPE, JOINT | Add to Inquiry | |
| 34 | 90445-07240 | HOSE (L330) | Add to Inquiry | |
| 35 | 90445-07M24 | HOSE (L240) | Add to Inquiry | |
| 36 | 90467-06016 | CLIP | Add to Inquiry | |
| 37 | 90467-06016 | CLIP | Add to Inquiry | |
| 38 | 6F5-14483-00 | GASKET | Add to Inquiry | |
| 39 | 6F5-41252-00 | LEVER, CHOKE 1 | Add to Inquiry | |
| 40 | 682-41271-00 | KNOB, CHOKE | Add to Inquiry | |
| 41 | 689-41273-00 | GROMMET | Add to Inquiry | |
| 42 | 6F6-41256-00 | ROD, CHOKE 1 | Add to Inquiry | |
| 43 | 661-41262-02 | JOINT, CHOKE LEVER | Add to Inquiry | |
| 44 | 91690-40032 | PIN, SPRING | Add to Inquiry |
