Side Cover

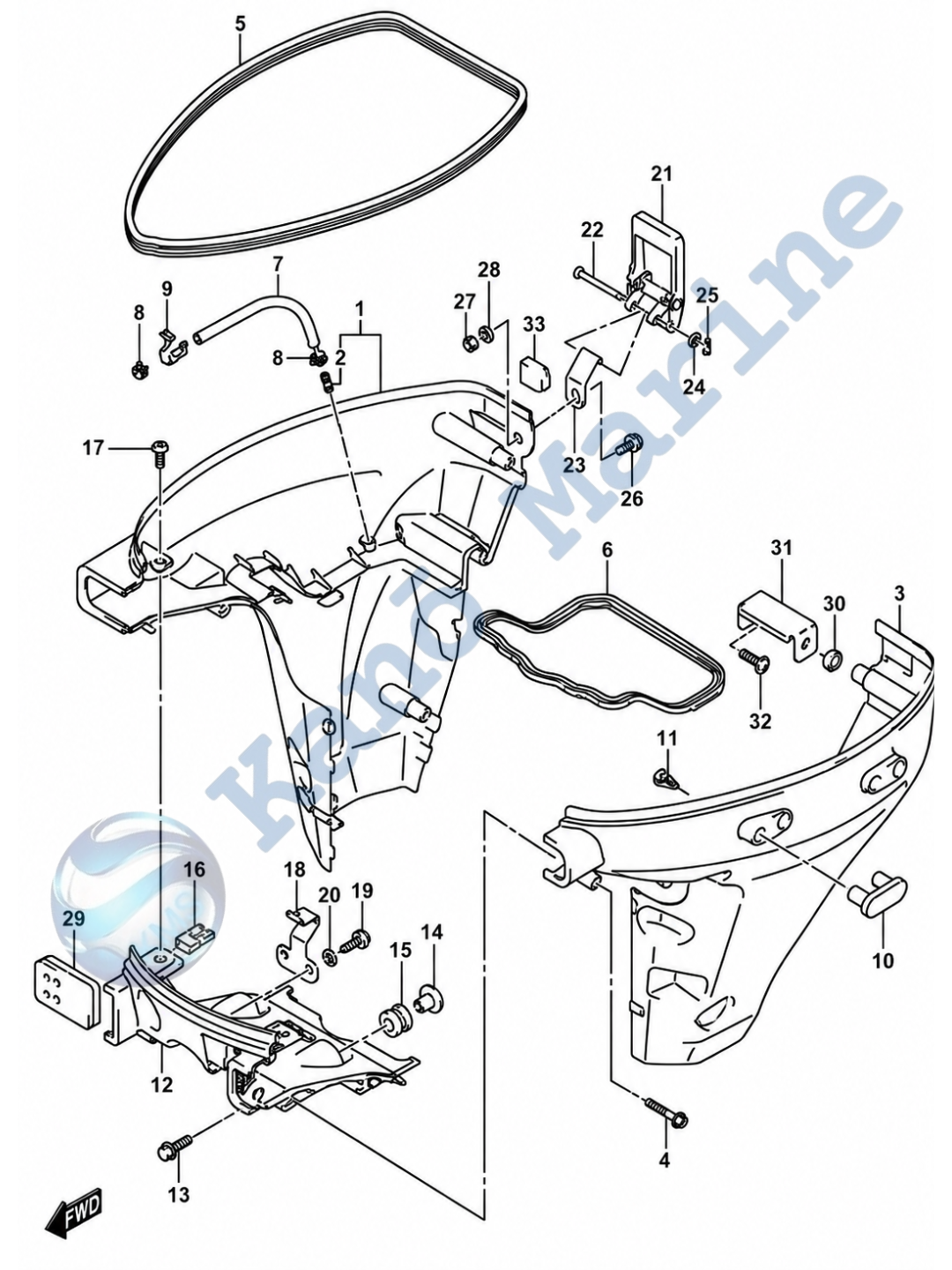

OEM Suzuki DF9.9A/B side cover exploded diagram and genuine part numbers.
Parts List
| Ref | Part No | Description | Qty | |
|---|---|---|---|---|
| 1 | 61810-99J00-0EP | COVER, SIDE STBD (BLACK) | ||
| 2 | 61155-94500 | TUBE, WATER INSP | ||
| 3 | 61821-99J00-0EP | COVER, SIDE PORT (BLACK) | ||
| 4 | 61815-99J00 | SCREW, SIDE COVER (6X35) | ||
| 5 | 61112-99J00 | RUBBER, SIDE COVER | ||
| 6 | 61134-99JL0 | SEAL, SIDE COVER | ||
| 7 | 61157-99J00 | HOSE, WATER INSPECTION | ||
| 8 | 09401-08413 | CLIP | ||
| 9 | 09403-12316 | CLAMP | ||
| 10 | 61851-93E10 | PROTECTOR, SIDE COVER | ||
| 11 | 59139-94J00 | SCREW, PROTECTOR | ||
| 12 | 61831-99J00-0EP | PANEL, INSTRUMENT (BLACK) | ||
| 13 | 09116-06133 | BOLT (6X25) | ||
| 14 | 09169-06075 | WASHER | ||
| 15 | 09320-09039 | CUSHION | ||
| 16 | 09148-06017 | NUT | ||
| 17 | 02142-06167 | SCREW | ||
| 18 | 61412-99J00 | HOOK, FRONT PANEL | ||
| 19 | 61643-99J00 | SCREW, HOOK | ||
| 20 | 09160-05029 | WASHER (5.5X12X0.8) | ||
| 21 | 61610-93G01 | FASTENER | ||
| 22 | PIN, LEVER | |||
| 23 | 61642-99J00 | HOLDER, FASTENER LEVER | ||
| 24 | 09161-04012 | WASHER (4.2X11X1) | ||
| 25 | 09385-04003 | CLIP | ||
| 26 | 29103-93J00 | BOLT, HOLDER (6X12) | ||
| 27 | 08310-00067 | NUT | ||
| 28 | 09160-06082 | WASHER (6.5X13X1.0) | ||
| 29 | 61124-99J00 | GROMMET, CABLE (STBD) | ||
| 30 | 61151-99J00 | CUSHION, SIDE COVER HOLDER | ||
| 31 | HOLDER, SIDE COVER | |||
| 32 | 02142-06167 | SCREW | ||
| 33 | 61813-99J00 | CUSHION, SIDE COVER |
