Remo Con Attachment

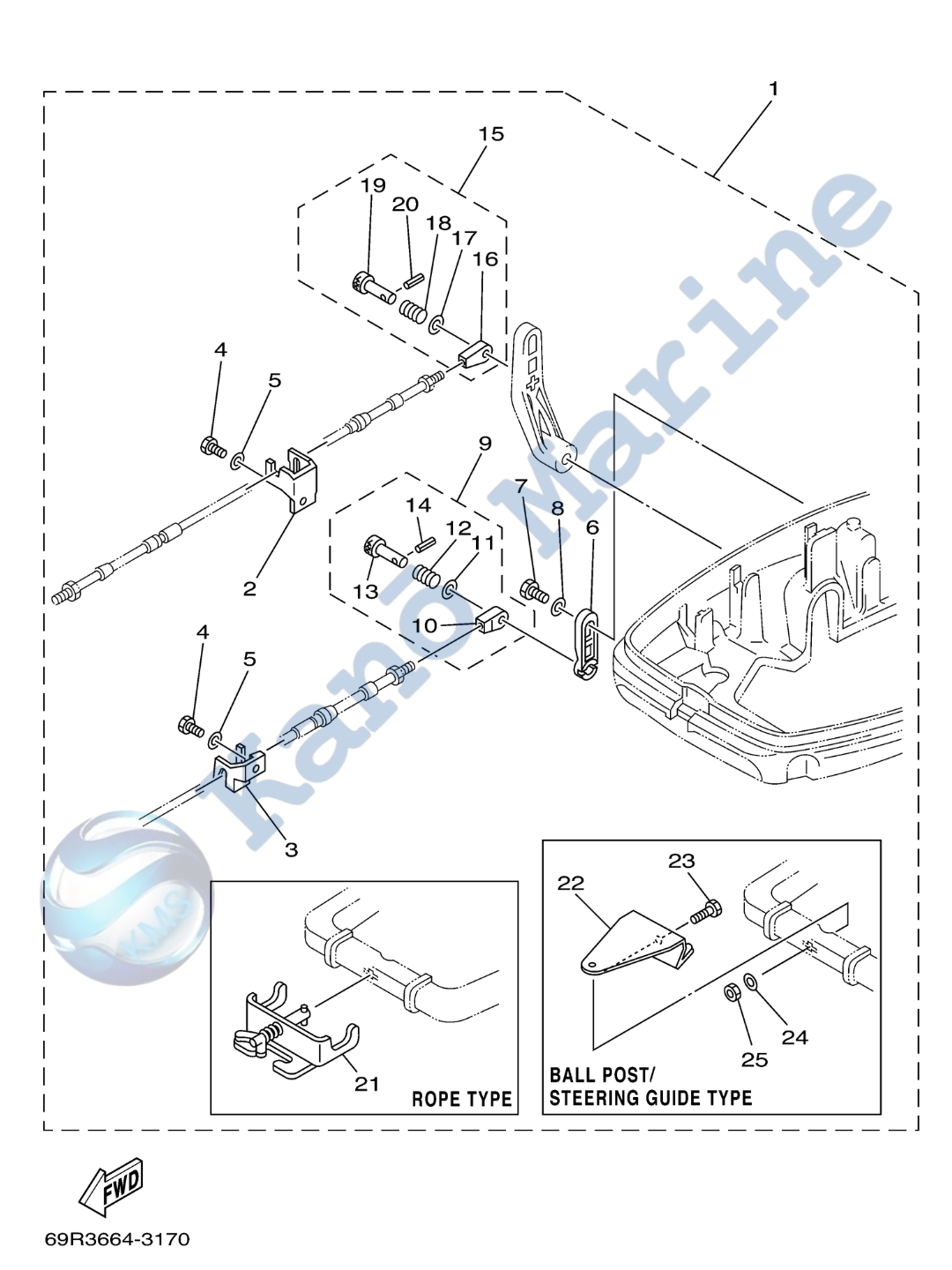

Exploded diagram and parts list for Yamaha 30HMHL Outboard Motor (2004)
Parts List
| Ref | Part No | Description | Qty | |
|---|---|---|---|---|
| 1 | Remote Control Attachment Assy | Add to Inquiry | ||
| 2 | 689-48531-52 | Bracket | Add to Inquiry | |
| 3 | 689-48532-52 | Bracket | Add to Inquiry | |
| 4 | 97D95-06016 | Bolt | Add to Inquiry | |
| 5 | 92990-06600 | Washer | Add to Inquiry | |
| 6 | 648-48534-50-8D | Link | Add to Inquiry | |
| 7 | 97080-06012 | Bolt | Add to Inquiry | |
| 8 | 92990-06600 | Washer | Add to Inquiry | |
| 9 | 648-48340-50 | Cable End Assy | Add to Inquiry | |
| 10 | 617-48346-90 | Cable End, Remote Control | Add to Inquiry | |
| 11 | 92990-08600 | Washer, Plate 8mm | Add to Inquiry | |
| 12 | 90501-10264 | Spring, Compression | Add to Inquiry | |
| 13 | 617-48361-91 | Hook, Cable | Add to Inquiry | |
| 14 | 91690-30012 | Pin, Spring | Add to Inquiry | |
| 15 | 648-48330-50 | Cable End Assy | Add to Inquiry | |
| 16 | 648-48346-50 | Cable End, Remote Control | Add to Inquiry | |
| 17 | 92990-08600 | Washer, Plate 8mm | Add to Inquiry | |
| 18 | 90501-10071 | Spring, Compression | Add to Inquiry | |
| 19 | 617-48331-91 | Hook, Cable | Add to Inquiry | |
| 20 | 91690-30012 | Pin, Spring | Add to Inquiry | |
| 21 | 700-48510-12 | Steering Hook Assy | Add to Inquiry | |
| 22 | 689-48511-02 | Steering Hook | Add to Inquiry | |
| 23 | 97D75-10040 | Bolt | Add to Inquiry | |
| 24 | 92990-10600 | Washer, Plate | Add to Inquiry | |
| 25 | 90185-10027 | Nut | Add to Inquiry |
