Repair Kit (3)

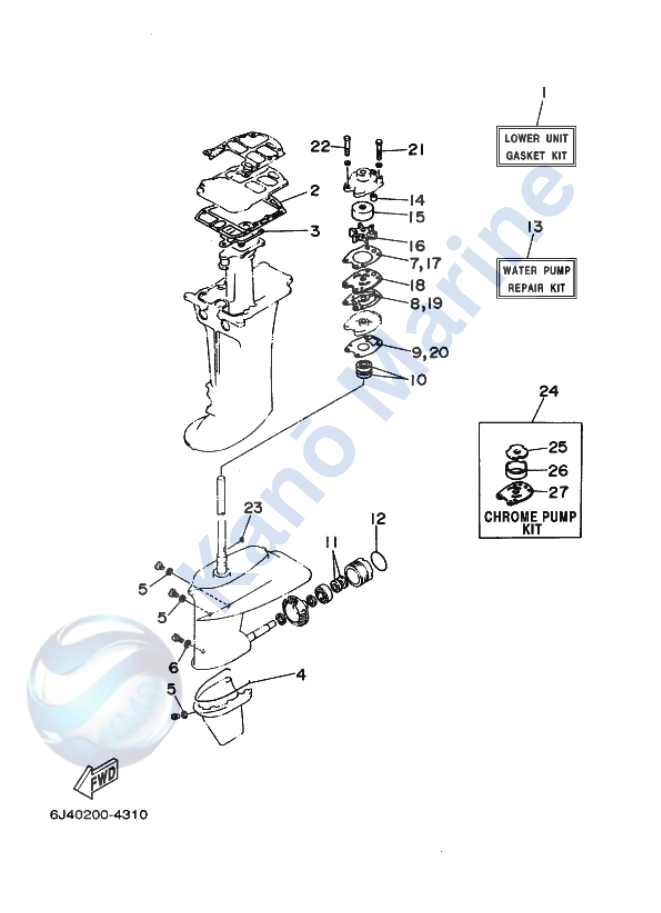

Exploded diagram and parts list for Yamaha 40HP – Repair Kit (3) (E40GMHL)
Parts List
| Ref | Part No | Description | Qty | |
|---|---|---|---|---|
| 1 | 6F5-W0001-C0 | Lower Unit Gasket Kit | Add to Inquiry | |
| 2 | 676-45114-A1 | Gasket, Upper Casing | Add to Inquiry | |
| 3 | 676-41133-A1 | Gasket, Exhaust Manifold 1 | Add to Inquiry | |
| 4 | 676-45314-00 | Seal, Lower Casing | Add to Inquiry | |
| 5 | 90430-08020 | Gasket | Add to Inquiry | |
| 6 | 90430-06003 | Gasket | Add to Inquiry | |
| 7 | 676-44315-A1 | Gasket, Water Pump | Add to Inquiry | |
| 8 | 676-44324-A1 | Gasket, Cartridge | Add to Inquiry | |
| 9 | 679-44316-A1 | Gasket, Water Pump | Add to Inquiry | |
| 10 | 93101-22M00 | Oil Seal | Add to Inquiry | |
| 11 | 93101-20048 | Oil Seal | Add to Inquiry | |
| 12 | 93210-57M00 | O-Ring | Add to Inquiry | |
| 13 | 6F5-W0078-A0 | Water Pump Repair Kit | Add to Inquiry | |
| 14 | 663-44366-00 | Damper, Water Seal | Add to Inquiry | |
| 15 | 676-44322-00 | Insert, Cartridge | Add to Inquiry | |
| 16 | 6F5-44352-00 | Impeller | Add to Inquiry | |
| 17 | 676-44315-A1 | Gasket, Water Pump | Add to Inquiry | |
| 18 | 676-44323-00 | Outer Plate, Cartridge | Add to Inquiry | |
| 19 | 676-44324-A1 | Gasket, Cartridge | Add to Inquiry | |
| 20 | 679-44316-A1 | Gasket, Water Pump | Add to Inquiry | |
| 21 | 97095-08055 | Bolt | Add to Inquiry | |
| 22 | 97095-08045 | Bolt | Add to Inquiry | |
| 23 | 92995-08600 | Washer | Add to Inquiry | |
| 24 | 90280-04M00 | Key, Woodruff | Add to Inquiry | |
| 25 | 676-W0078-0A | Chrome Pump Kit | Add to Inquiry | |
| 26 | 676-44321-40 | Inner Plate, Cartridge | Add to Inquiry | |
| 27 | 676-44322-40 | Insert, Cartridge | Add to Inquiry | |
| 28 | 676-44323-40 | Outer Plate, Cartridge | Add to Inquiry |
