Electrical (2)

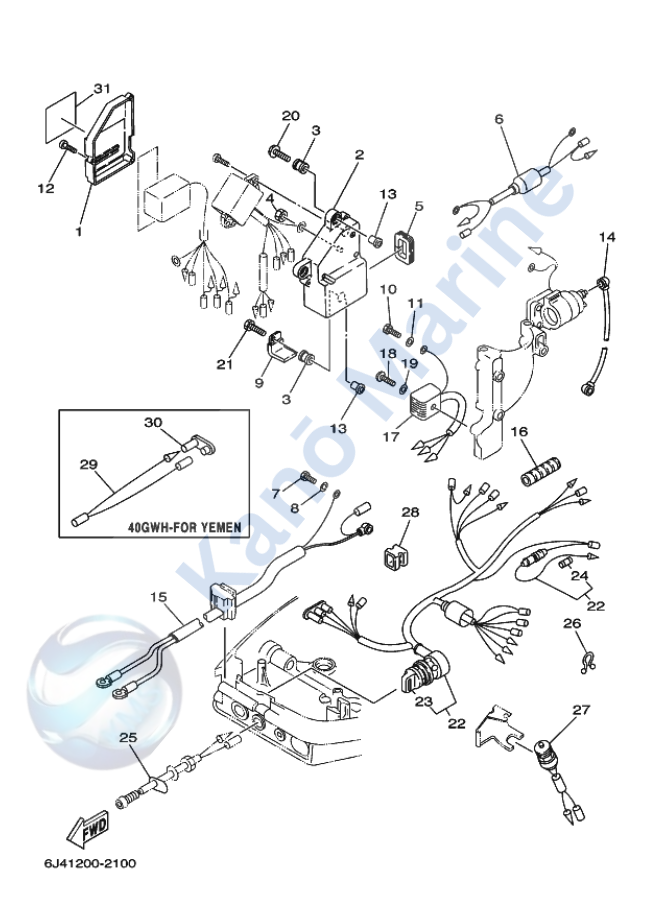

Exploded diagram and parts list for Yamaha 40HP Electrical (2) (E40GMHL – 2003)
Parts List
| Ref | Part No | Description | Qty | |
|---|---|---|---|---|
| 1 | 6F5-81916-40 | Cover, Terminal | Add to Inquiry | |
| 2 | 6F5-85542-40 | Bracket | Add to Inquiry | |
| 3 | 6A0-82317-00 | Damper, Ignition Coil | Add to Inquiry | |
| 4 | 95380-06600 | Nut, Hexagon | Add to Inquiry | |
| 5 | 6F5-81922-40 | Grommet | Add to Inquiry | |
| 6 | 6F5-82519-10 | Wire, Earth Lead | Add to Inquiry | |
| 7 | 97095-08016 | Bolt | Add to Inquiry | |
| 8 | 92995-08100 | Washer | Add to Inquiry | |
| 9 | 90465-06M16 | Clamp | Add to Inquiry | |
| 10 | 97013-06016 | Bolt | Add to Inquiry | |
| 11 | 92903-06600 | Washer, Plate | Add to Inquiry | |
| 12 | 90164-05M00 | Screw, Tapping | Add to Inquiry | |
| 13 | 624-42542-00 | Pipe | Add to Inquiry | |
| 14 | 6F5-82117-00 | Wire, Lead | Add to Inquiry | |
| 15 | 6F5-82105-00 | Wire Harness | Add to Inquiry | |
| 16 | 90446-10M02 | Hose | Add to Inquiry | |
| 17 | 6F5-81970-61 | Rectifier Assy | Add to Inquiry | |
| 18 | 663-82151-00 | Fuse (12V-20A) | Add to Inquiry | |
| 19 | 97880-05025 | Screw, Pan Head | Add to Inquiry | |
| 20 | 90119-06M88 | Bolt, With Washer | Add to Inquiry | |
| 21 | 97095-06025 | Bolt | Add to Inquiry | |
| 22 | 6F5-82510-02 | Main Switch Assy | Add to Inquiry | |
| 23 | 676-82577-00 | Cap, Key | Add to Inquiry | |
| 24 | 663-82151-00 | Fuse (12V-20A) | Add to Inquiry | |
| 25 | 6E9-85414-40 | Holder, Overheat Warning Lamp | Add to Inquiry | |
| 26 | 90465-18147 | Clamp | Add to Inquiry | |
| 27 | 6F5-82540-00 | Neutral Switch Assy | Add to Inquiry | |
| 28 | 90480-17M08 | Grommet | Add to Inquiry | |
| 29 | 6F6-82509-00 | Wire, Sub Lead | Add to Inquiry | |
| 30 | 6A0-82119-00 | Cover, Lead Wire | Add to Inquiry | |
| 31 | 6F5-83622-60 | Mark 2 | Add to Inquiry |
