Fuel Pump

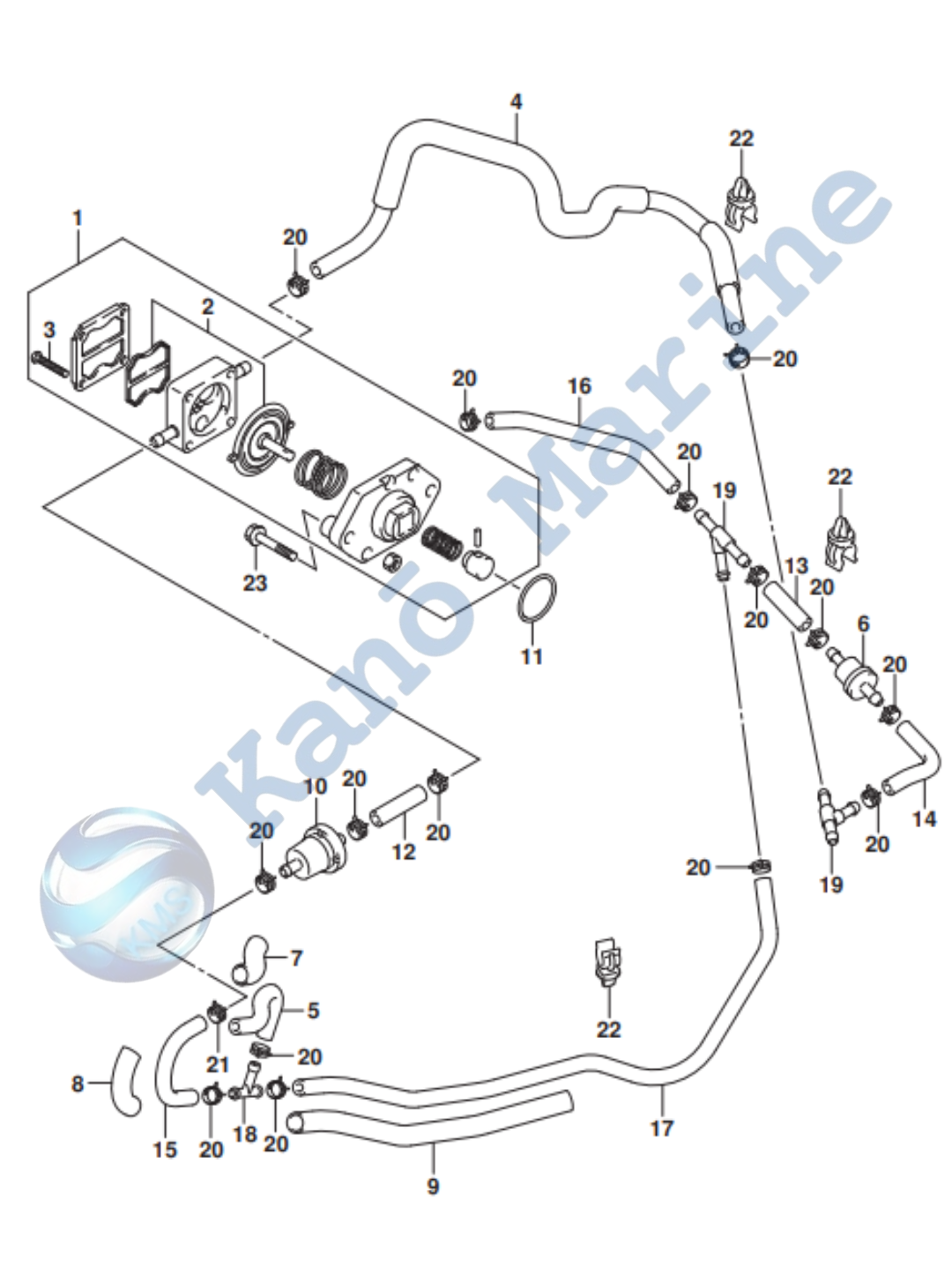

OEM Suzuki DF6A fuel pump exploded diagram and genuine part numbers.
Parts List
| Ref | Part No | Description | Qty | |
|---|---|---|---|---|
| 1 | 15100-91J02 | PUMP ASSY, FUEL | ||
| 2 | 15770-91J01 | DIAPHRAGM SET | ||
| 3 | 15251-91J00 | SCREW | ||
| 4 | 15191-97L00 | HOSE, FUEL (PUMP TO FIL) | ||
| 5 | 15192-97L00 | HOSE, FUEL (CONN TO ELB3) | ||
| 6 | 15850-97L00 | VALVE, FUEL RTN CHECK | ||
| 7 | 33833-97L00 | PROTECTOR, FUEL HOSE | ||
| 8 | 33833-97L10 | PROTECTOR, FUEL HOSE | ||
| 9 | 33833-97L20 | PROTECTOR, FUEL HOSE | ||
| 10 | 44330-13H00 | FILTER, FUEL | ||
| 11 | 09280-27006 | O RING (D:2, ID:27.5) | ||
| 12 | 09343-50L01-040 | HOSE (5X10X40) | ||
| 13 | 09343-50L01-040 | HOSE (5X10X40) | ||
| 14 | 09343-50L01-080 | HOSE (5X10X80) | ||
| 15 | 09343-50L01-110 | HOSE (5X10X110) | ||
| 16 | 09343-50L01-120 | HOSE (5X10X120) | ||
| 17 | 09343-50L01-440 | HOSE (5X10X440) | ||
| 18 | 09367-06002 | JOINT, 3 WAY | ||
| 19 | 09367-06007 | 3 WAY | ||
| 20 | 09401-09404 | CLIP | ||
| 21 | 09401-11424 | CLIP | ||
| 22 | 09403-09326 | CLAMP | ||
| 23 | 01550-0630C | BOLT |
