Lower Cover

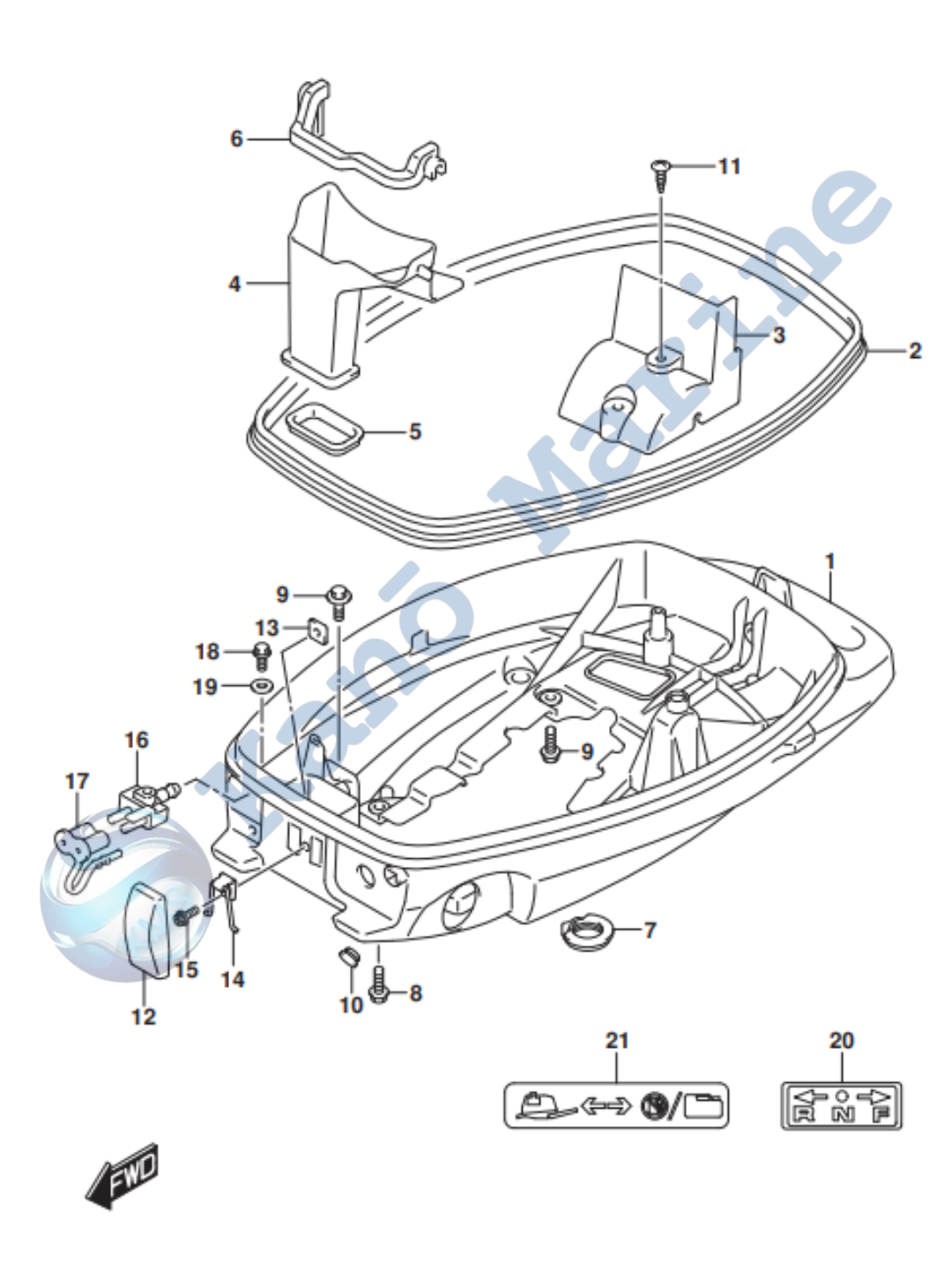

OEM Suzuki DF6A lower cover exploded diagram and genuine part numbers.
Parts List
| Ref | Part No | Description | Qty | |
|---|---|---|---|---|
| 1 | 61110-97L00-QCF | Cover, Engine Lower (Black) | Add to Inquiry | |
| 2 | 61112-97L00 | Rubber, Engine Lower Cover | Add to Inquiry | |
| 3 | 61117-97L00 | Cover, Air Intake Lower | Add to Inquiry | |
| 4 | 61135-97L00 | Duct, Air Vent | Add to Inquiry | |
| 5 | 61135-97L00 | Cushion, Air Vent Duct Lower | Add to Inquiry | |
| 6 | 61137-97L00 | Cushion, Air Vent Duct Upper | Add to Inquiry | |
| 7 | 61189-97L00 | Grommet, Oil Drain | Add to Inquiry | |
| 8 | 09116-06227 | Bolt (6X20) | Add to Inquiry | |
| 9 | 09116-06509 | Bolt (6X20) | Add to Inquiry | |
| 10 | 09250-10010 | Cap (OD:15) | Add to Inquiry | |
| 11 | 03542-05169 | Screw | Add to Inquiry | |
| 12 | 61611-91J11 | Fastener, Engine Cover | Add to Inquiry | |
| 13 | 61626-97L00 | Nut, Fastener Lever | Add to Inquiry | |
| 14 | 61640-91J10 | Lever, Fastener | Add to Inquiry | |
| 15 | 09106-05035 | Bolt (5X14) | Add to Inquiry | |
| 16 | 65720-986L0 | Plug, Fuel Connector | Add to Inquiry | |
| 17 | 65277-91JL0 | Cap, Fuel Connector Plug | Add to Inquiry | |
| 18 | 09103-06237 | Bolt (6X12.5) | Add to Inquiry | |
| 19 | 09160-06085 | Washer (6.5X15X1) | Add to Inquiry | |
| 20 | 21131-96010 | Mark, Clutch Shift | Add to Inquiry | |
| 21 | 61211-97L00 | Mark, Fuel Cock | Add to Inquiry |
