OPT. Remote Control Assy (single 2)

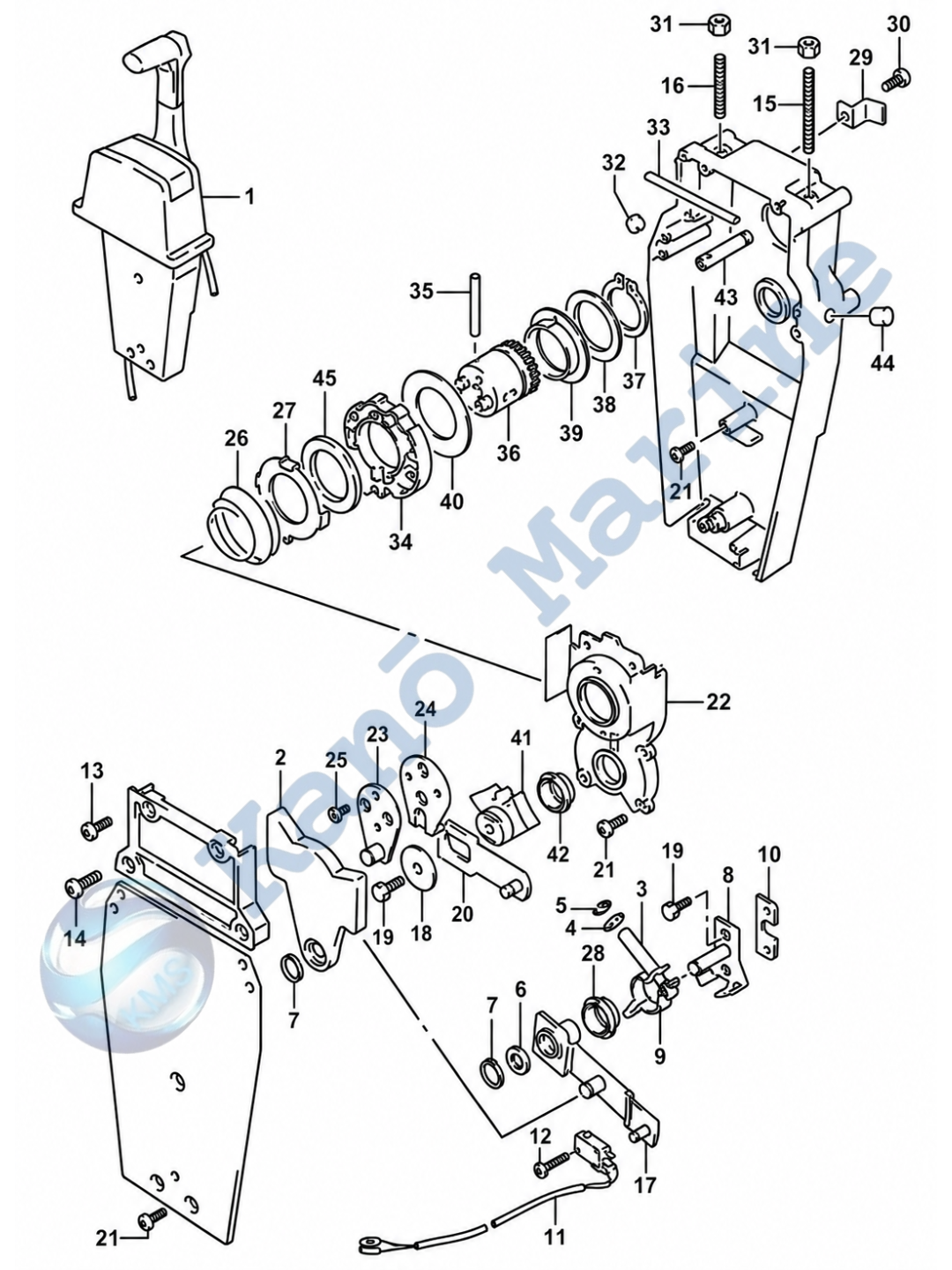

OEM Suzuki DF8A OPT. Remote Control Assy (Single 2) exploded diagram and genuine part numbers.
Parts List
| Ref | Part No | Description | Qty | |
|---|---|---|---|---|
| 1 | 67200-93J13 | REMOTE CONTROL ASSY | ||
| 2 | 67222-92E00 | DUAL PLATE | ||
| 3 | 67223-92E00 | BRAKE ADJUST | ||
| 4 | 67288-92E00 | WASHER | ||
| 5 | 67292-94300 | E RING | ||
| 6 | 67288-92E10 | WASHER | ||
| 7 | 67291-92E00 | SNAP RING | ||
| 8 | 67221-92E00 | SHIFT ASSY | ||
| 9 | 67224-92E00 | BRAKE ARM ASSY | ||
| 10 | 67294-92E00 | SPACER | ||
| 11 | 37721-95500 | SWITCH ASSY, N/R | ||
| 12 | 67296-92E10 | SCREW (3X15) | ||
| 13 | 67296-88D10 | SCREW (5X16) | ||
| 14 | 67296-92E20 | SCREW (5X25) | ||
| 15 | 67226-92E00 | BOLT, STOPPER FRONT | ||
| 16 | 67226-92E10 | BOLT, STOPPER REAR | ||
| 17 | 67240-92E00 | ARM ASSY, THROTTLE | ||
| 18 | 67228-92E00 | WASHER | ||
| 19 | 67286-92E00 | BOLT (6X18) | ||
| 20 | 67230-92E00 | SHIFT ARM ASSY | ||
| 21 | 09125-05042 | SCREW (5X10) | ||
| 22 | 67234-92E00 | CASE, GEAR | ||
| 23 | 67245-92E00 | LEVER ASSY, THROTTLE | ||
| 24 | 67227-92E00 | STOPPER | ||
| 25 | 09126-06006 | SCREW (6X20) | ||
| 26 | 67233-92E00 | SPRING | ||
| 27 | 67235-92E00 | PLATE, SHIFT LOCK | ||
| 28 | 67232-95620 | BUSH | ||
| 29 | 67269-92E00 | BRACKET | ||
| 30 | 67296-88D10 | SCREW | ||
| 31 | 09140-06020 | NUT | ||
| 32 | 67236-92E00 | ROLLER | ||
| 33 | 67237-92E01 | SPRING | ||
| 34 | 67238-92E00 | GEAR, DRIVE |
