Bracket (1)

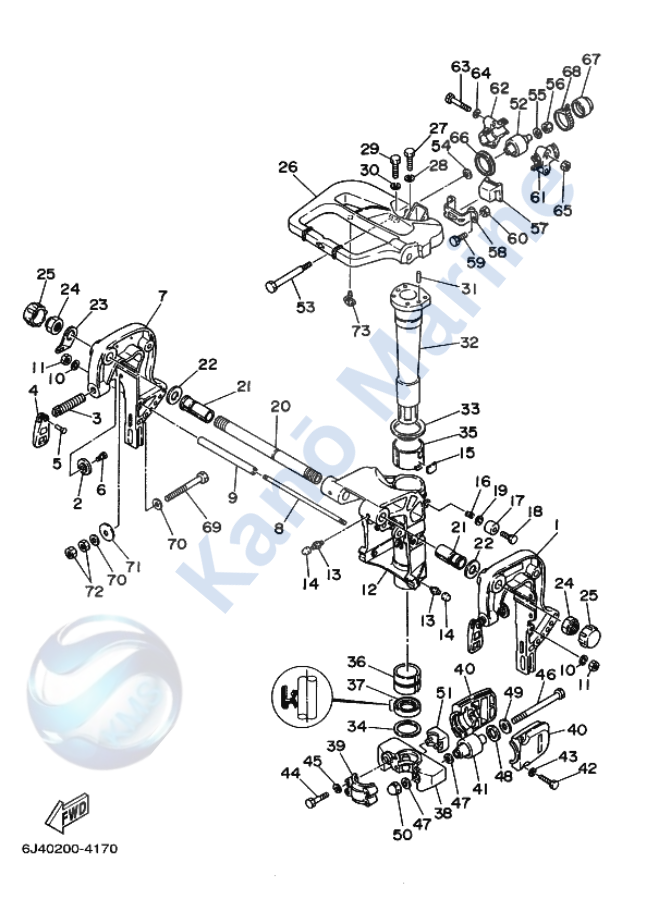

Exploded diagram and parts list for Yamaha 40HP Bracket (1) (E40GMHL – 2003)
Parts List
| Ref | Part No | Description | Qty | |
|---|---|---|---|---|
| 1 | 676-43111-04-4D | BRACKET, CLAMP | Add to Inquiry | |
| 2 | 6F5-43114-00 | PAD, TRANSOM CLAMP | Add to Inquiry | |
| 3 | 6F5-43116-00 | SCREW, TRANSOM CLAMP | Add to Inquiry | |
| 4 | 663-43118-01-4D | HANDLE, TRANSOM CLAMP | Add to Inquiry | |
| 5 | 90243-04007 | PIN | Add to Inquiry | |
| 6 | 90109-06M12 | BOLT | Add to Inquiry | |
| 7 | 676-43112-04-4D | BRACKET, CLAMP | Add to Inquiry | |
| 8 | 90116-08M00 | BOLT, STUD | Add to Inquiry | |
| 9 | 90387-08M02 | COLLAR | Add to Inquiry | |
| 10 | 92990-08100 | WASHER, SPRING | Add to Inquiry | |
| 11 | 95380-08600 | NUT | Add to Inquiry | |
| 12 | 676-43311-10-4D | BRACKET, SWIVEL 1 | Add to Inquiry | |
| 13 | 93700-06M03 | NIPPLE, GREASE | Add to Inquiry | |
| 14 | 663-45119-00 | CAP, GREASE NIPPLE | Add to Inquiry | |
| 15 | 648-42528-00 | PLATE, FRICTION | Add to Inquiry | |
| 16 | 90501-18M00 | SPRING, COMPRESSION | Add to Inquiry | |
| 17 | 676-43373-00 | SEAL, DAMPER | Add to Inquiry | |
| 18 | 97075-08025 | BOLT | Add to Inquiry | |
| 19 | 92995-08600 | WASHER | Add to Inquiry | |
| 20 | 6J8-43131-01 | BOLT, CLAMP BRACKET | Add to Inquiry | |
| 21 | 90386-22M15 | BUSH | Add to Inquiry | |
| 22 | 90201-22M03 | WASHER, PLATE | Add to Inquiry | |
| 23 | 6J8-43113-01 | PLATE, CLAMP BRACKET | Add to Inquiry | |
| 24 | 90185-22043 | NUT, SELF-LOCKING | Add to Inquiry | |
| 25 | 6G5-43145-01 | CAP, CLAMP BRACKET | Add to Inquiry | |
| 26 | 676-42511-02-4D | BRACKET, STEERING | Add to Inquiry | |
| 27 | 97075-08030 | BOLT | Add to Inquiry | |
| 28 | 92995-08100 | WASHER | Add to Inquiry | |
| 29 | 97075-08035 | BOLT | Add to Inquiry | |
| 30 | 92995-08100 | WASHER | Add to Inquiry | |
| 31 | 93608-12063 | PIN, DOWEL | Add to Inquiry | |
| 32 | 676-42521-00-94 | SHAFT, STEERING PIVOT | Add to Inquiry | |
| 33 | 90209-52M00 | WASHER | Add to Inquiry | |
| 34 | 90201-44M01 | WASHER, PLATE | Add to Inquiry | |
| 35 | 90386-52M02 | BUSH | Add to Inquiry | |
| 36 | 90386-44M03 | BUSH | Add to Inquiry | |
| 37 | 93109-44M00 | OIL SEAL | Add to Inquiry | |
| 38 | 676-44551-01-4D | HOUSING, LOWER MOUNT RUBBER | Add to Inquiry | |
| 39 | 676-44552-01-4D | HOUSING, LOWER MOUNT RUBBER | Add to Inquiry | |
| 40 | 676-44553-01-4D | COVER, LOWER MOUNT | Add to Inquiry | |
| 41 | 679-44555-00-94 | MOUNT DAMPER, LOWER SIDE | Add to Inquiry | |
| 42 | 97075-08030 | BOLT | Add to Inquiry | |
| 43 | 92995-08100 | WASHER | Add to Inquiry | |
| 44 | 97095-08045 | BOLT | Add to Inquiry | |
| 45 | 92995-08100 | WASHER | Add to Inquiry | |
| 46 | 90101-12M01 | BOLT | Add to Inquiry | |
| 47 | 90201-12M16 | WASHER, PLATE | Add to Inquiry | |
| 48 | 90202-21100 | WASHER, PLATE | Add to Inquiry | |
| 49 | 90201-13M11 | WASHER, PLATE | Add to Inquiry | |
| 50 | 95380-12800 | NUT, CROWN | Add to Inquiry | |
| 51 | 676-44575-00 | DAMPER, LOWER MOUNT RUBBER | Add to Inquiry | |
| 52 | 679-44514-00-94 | MOUNT DAMPER, UPPER SIDE | Add to Inquiry | |
| 53 | 90101-08M02 | BOLT | Add to Inquiry | |
| 54 | 90201-08M08 | WASHER, PLATE | Add to Inquiry | |
| 55 | 90201-09M00 | WASHER, PLATE | Add to Inquiry | |
| 56 | 90185-08057 | NUT, SELF-LOCKING | Add to Inquiry | |
| 57 | 676-44533-00 | DAMPER, UPPER MOUNT RUBBER | Add to Inquiry | |
| 58 | 676-44518-00 | BRACKET COMP. | Add to Inquiry | |
| 59 | 97095-06025 | BOLT | Add to Inquiry | |
| 60 | 95380-06600 | NUT, HEXAGON | Add to Inquiry | |
| 61 | 676-44511-00-94 | COVER, UPPER MOUNT | Add to Inquiry | |
| 62 | 676-44512-00-94 | COVER, UPPER MOUNT | Add to Inquiry | |
| 63 | 97095-08050 | BOLT | Add to Inquiry | |
| 64 | 92995-08600 | WASHER | Add to Inquiry | |
| 65 | 95380-08600 | NUT | Add to Inquiry | |
| 66 | 676-44521-00 | SEAL | Add to Inquiry | |
| 67 | 676-44522-01 | SEAL | Add to Inquiry | |
| 68 | 90465-11M52 | CLAMP | Add to Inquiry | |
| 69 | 90101-10M58 | BOLT | Add to Inquiry | |
| 70 | 92995-10600 | WASHER | Add to Inquiry | |
| 71 | 90201-12426 | WASHER, PLATE | Add to Inquiry | |
| 72 | 95380-10600 | NUT | Add to Inquiry | |
| 73 | 676-42591-00 | HOLDER, SHEAR PIN | Add to Inquiry |
