Harness

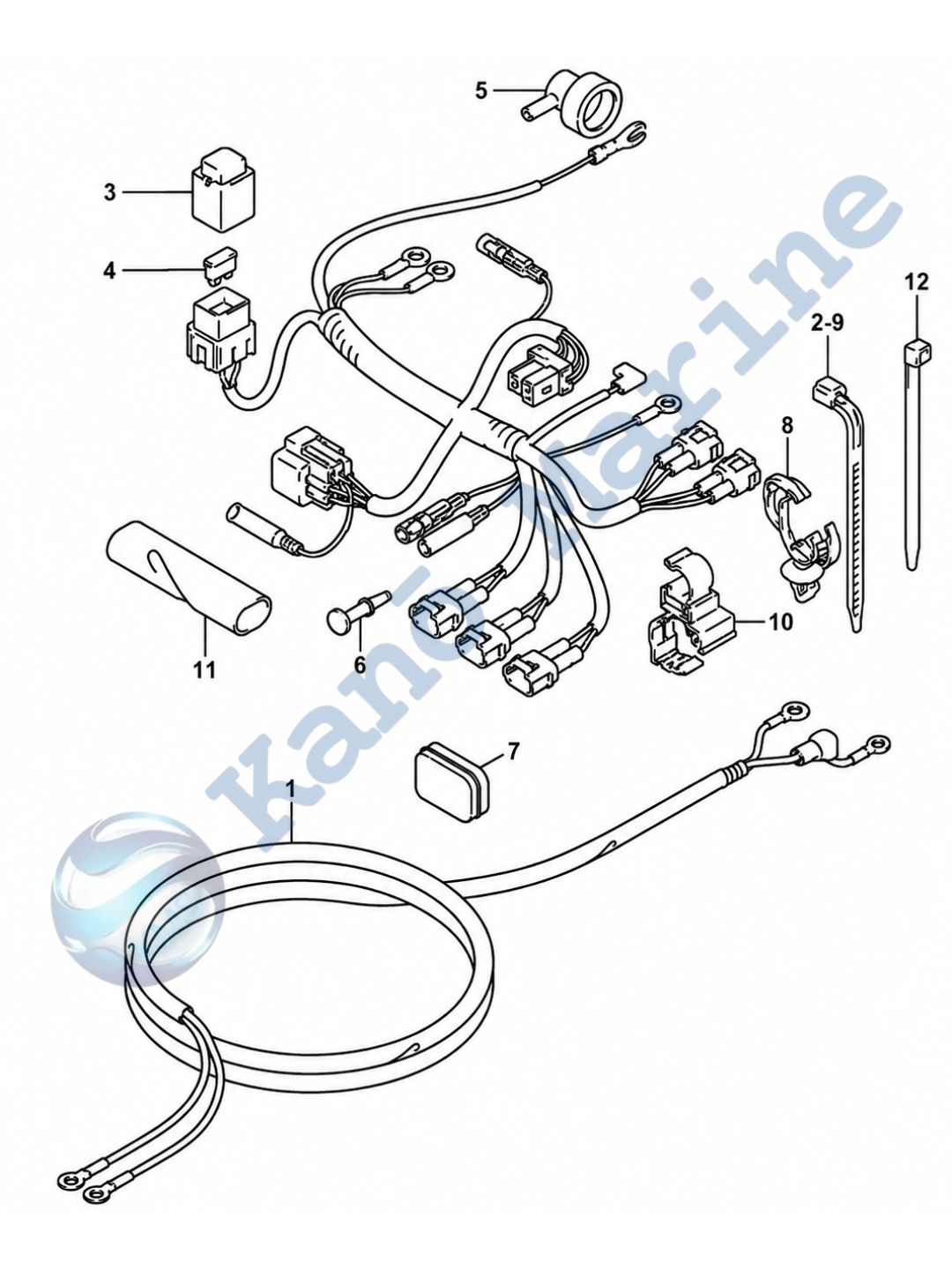

OEM Suzuki DF8A / DF9.9A harness exploded diagram and genuine part numbers.
Use zoom controls to inspect part numbers
Parts List
| Ref |
Part No |
Description |
Qty |
|
| 1 |
33810-99J00 |
CABLE, STARTER |
|
|
| 2 |
09407-14403 |
CLAMP (L:125) |
|
|
| 3 |
|
HARNESS ASSY, WIRING
|
|
|
| 4 |
09481-20501 |
FUSE (20A) |
|
|
| 5 |
36618-43410 |
CAP, OIL PRESSURE SWITCH |
|
|
| 6 |
|
TERMINAL, RESIN
|
|
|
| 7 |
36656-99J00 |
GROMMET, CABLE (PORT) |
|
|
| 8 |
09403-13311 |
CLAMP |
|
|
| 9 |
09407-14403 |
CLAMP (L:125) |
|
|
| 10 |
09408-00265 |
CLAMP |
|
|
| 11 |
33833-99J10 |
TUBE, HARNESS LEAD |
|
|
| 12 |
09407-14407 |
CLAMP (L:145) |
|
|
✉
