Starting Motor

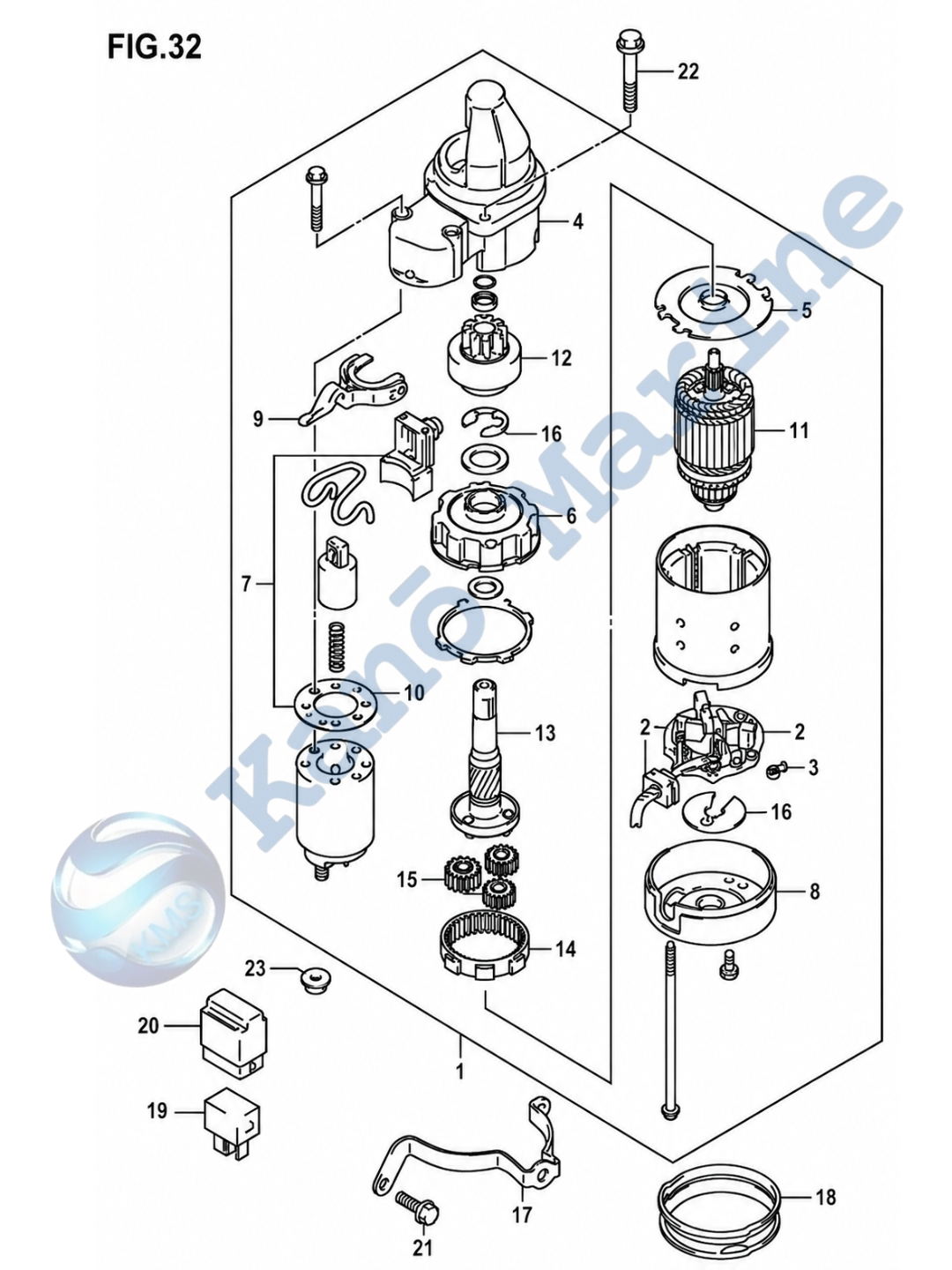

OEM Suzuki DF8A starting motor exploded diagram and genuine part numbers.
Parts List
| Ref | Part No | Description | Qty | |
|---|---|---|---|---|
| 1 | 31100-94J21 | STARTING MOTOR | ||
| 2 | 31131-94J00 | BRUSH SET, PLUS | ||
| 3 | 31135-90J00 | SPRING | ||
| 4 | 31151-94J00 | CASE, GEAR | ||
| 5 | 31152-90J00 | PLATE, CENTER | ||
| 6 | 31153-90J00 | BRACKET, PLANET GEAR | ||
| 7 | 31171-96J00 | COVER KIT, DUST | ||
| 8 | 31173-94J00 | HOLDER ASSY, BRUSH | ||
| 9 | 31191-96J00 | LEVER, SHIFT | ||
| 10 | 31220-94J00 | SWITCH, MAGNET | ||
| 11 | 31310-90J00 | ARMATURE | ||
| 12 | 31320-94J00 | PINION | ||
| 13 | 31341-94J00 | SHAFT, PINION | ||
| 14 | 31343-90J00 | INTERNAL GEAR | ||
| 15 | 31344-90J00 | GEAR, PLANETARY | ||
| 16 | 31360-93J01 | WASHER SET | ||
| 17 | 31912-99J00 | BAND, STARTING MOTOR | ||
| 18 | 31918-94J00 | DAMPER, LOWER | ||
| 19 | 38860-76F01 | RELAY, STARTING MOTOR | ||
| 20 | 38915-90J00 | HOLDER, RELAY | ||
| 21 | 01550-06167 | BOLT | ||
| 22 | BOLT | |||
| 23 | 08316-10087 | NUT |
