Swivel Bracket

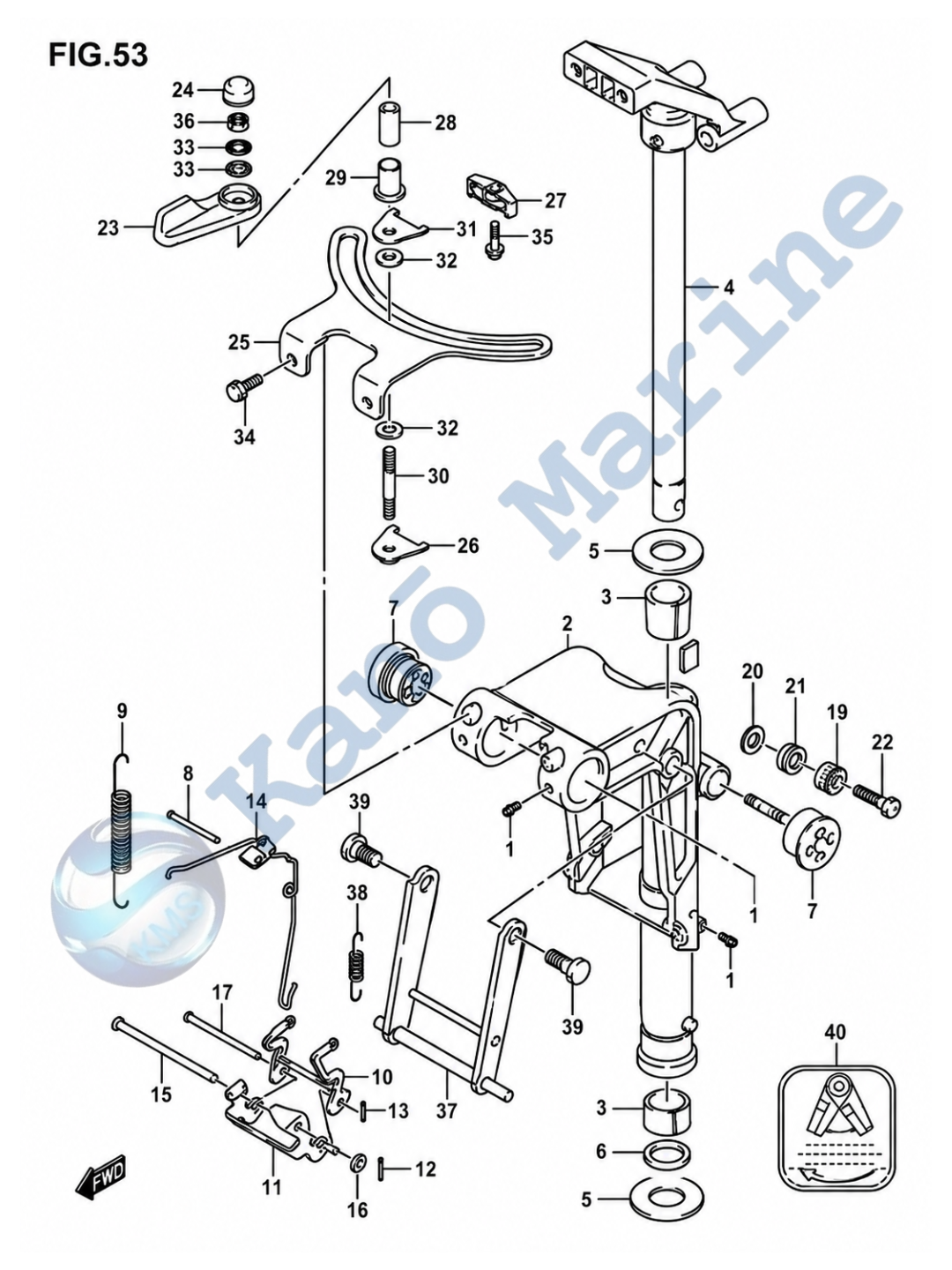

OEM Suzuki DF9.9A/B swivel bracket exploded diagram and genuine part numbers.
Parts List
| Ref | Part No | Description | Qty | |
|---|---|---|---|---|
| 1 | 22511-99011 | NIPPLE | ||
| 2 | BRACKET, SWIVEL | |||
| 3 | 43711-99J00 | BUSH, STEERING | ||
| 4 | BRACKET, STEERING | |||
| 5 | 09160-27009 | WASHER (27.5X47X2) | ||
| 6 | 09282-27002 | OIL SEAL (26X39X5) | ||
| 7 | 43211-99J00 | BUSH, SWIVEL BRACKET | ||
| 8 | 41225-94502 | PIN, RELEASE ARM | ||
| 9 | 45212-99J10 | SPRING, REVERSE LOCK ARM | ||
| 10 | 45231-99J10 | ARM, REVERSE LOCK | ||
| 11 | 45241-99JL1 | LINK, REVERSE LOCK ARM | ||
| 12 | 09204-01002 | PIN | ||
| 13 | 45247-99J00 | PIN, REV LOCK ARM COTTER | ||
| 14 | 45250-94J00 | LINK, RELEASE | ||
| 15 | 09200-06061 | PIN | ||
| 16 | 09160-06082 | WASHER (6.5X13X1.0) | ||
| 17 | 09200-05014 | PIN | ||
| 18 | 43411-939L0 | PLATE, STRG ADJUSTER | ||
| 19 | 43412-93900 | COVER, STRG ADJUSTER | ||
| 20 | 29440-93J00 | SPRING, STRG ADJUSTER | ||
| 21 | 09160-08082 | WASHER (8.5X16X1.2) | ||
| 22 | 09100-08232 | BOLT (8X30) | ||
| 23 | 43410-99J00 | LEVER, STRG ADJ | ||
| 24 | 43412-99J00 | COVER, STRG ADJ | ||
| 25 | 43415-99J00 | PLATE, STRG ADJ | ||
| 26 | 43420-99J10 | PLATE, ADJ FRICTION | ||
| 27 | 43424-99J00 | HOLDER, ADJ NUT | ||
| 28 | 43427-99J00 | SPACER, ADJ NUT | ||
| 29 | 43428-99J00 | BUSH, ADJ NUT | ||
| 30 | 43512-99J00 | SHAFT, ADJ THREAD | ||
| 31 | 43514-94J00 | PLATE, ADJ FRICTION | ||
| 32 | 43514-99J00 | WASHER, ADJ FRICTION PLATE | ||
| 33 | 43516-89J00 | WASHER, STRG ADJ | ||
| 34 | 09116-06094 | BOLT (6X15) | ||
| 35 | 09116-06121 | BOLT (6X25) | ||
| 36 | 09159-08059 | NUT | ||
| 37 | 45710-99JL0 | ARM, SHALLOW DRIVE | ||
| 38 | 45722-94J11 | SPRING, ARM | ||
| 39 | 09111-10032 | BOLT (10X24) | ||
| 40 | 45269-99J00 | MARK, STRG ADJ |
