Lower Casing & Drive 1

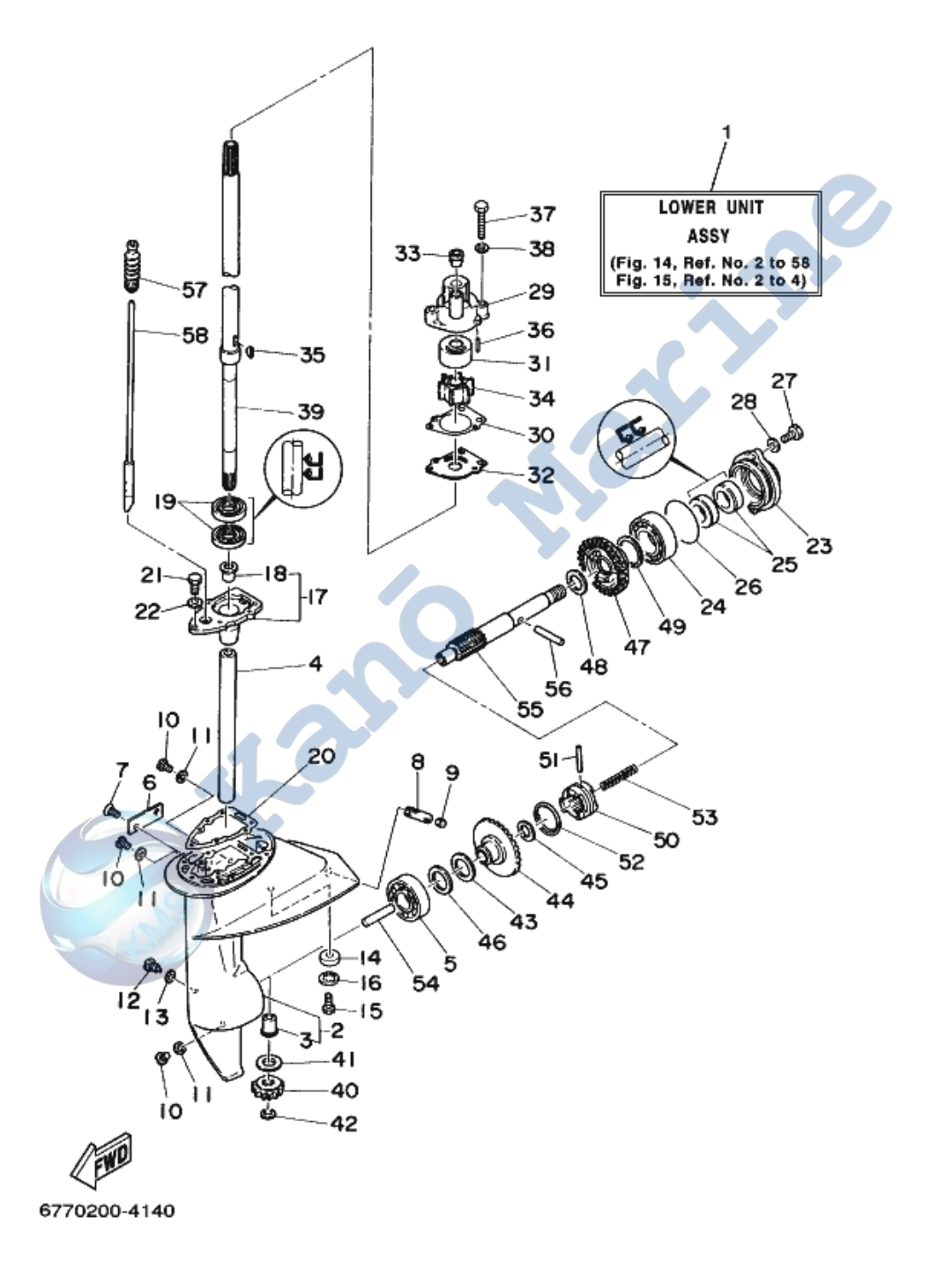

Exploded diagram and parts list for Yamaha 8HP Lower Casing & Drive 1 (E8DMHL – 2003)
Parts List
| Ref | Part No | Description | Qty | |
|---|---|---|---|---|
| 1 | Lower Unit Assy | Add to Inquiry | ||
| 2 | 655-45310-02-4D | Lower Casing Assy | Add to Inquiry | |
| 3 | 647-45316-09 | Bushing, Drive Shaft | Add to Inquiry | |
| 4 | 90387-14108 | Collar | Add to Inquiry | |
| 5 | 93306-004U0 | Bearing | Add to Inquiry | |
| 6 | 655-45214-02-4D | Cover, Water Inlet | Add to Inquiry | |
| 7 | 90152-05M02 | Screw, Countersunk | Add to Inquiry | |
| 8 | 626-45215-00 | Cover, Water Inlet | Add to Inquiry | |
| 9 | 90334-10008 | Plug, Straight | Add to Inquiry | |
| 10 | 90340-08002 | Plug, Straight Screw | Add to Inquiry | |
| 11 | 90430-08020 | Gasket | Add to Inquiry | |
| 12 | 90149-06003 | Screw | Add to Inquiry | |
| 13 | 90430-06M03 | Gasket | Add to Inquiry | |
| 14 | 677-45251-00 | Anode | Add to Inquiry | |
| 15 | 95895-06012 | Bolt, Flange | Add to Inquiry | |
| 16 | 92990-06300 | Washer, Internal Tooth | Add to Inquiry | |
| 17 | 647-45331-00-94 | Housing, Bearing | Add to Inquiry | |
| 18 | 647-45316-09 | Bushing, Drive Shaft | Add to Inquiry | |
| 19 | 93101-18050 | Oil Seal | Add to Inquiry | |
| 20 | 677-45315-A1 | Packing, Lower Casing | Add to Inquiry | |
| 21 | 97095-06020 | Bolt | Add to Inquiry | |
| 22 | 92995-06600 | Washer | Add to Inquiry | |
| 23 | 655-45361-02-4D | Cap, Lower Casing | Add to Inquiry | |
| 24 | 93306-00501 | Bearing (B6005) | Add to Inquiry | |
| 25 | 93101-15074 | Oil Seal | Add to Inquiry | |
| 26 | 93210-58144 | O-Ring | Add to Inquiry | |
| 27 | 97095-06020 | Bolt | Add to Inquiry | |
| 28 | 92995-06600 | Washer | Add to Inquiry | |
| 29 | 655-44311-03 | Housing, Water Pump | Add to Inquiry | |
| 30 | 655-44315-A1 | Gasket, Water Pump | Add to Inquiry | |
| 31 | Insert, Cartridge | Add to Inquiry | ||
| 32 | Outer Plate, Cartridge | Add to Inquiry | ||
| 33 | 647-44366-00 | Damper, Water Seal | Add to Inquiry | |
| 34 | 662-44352-01 | Impeller | Add to Inquiry | |
| 35 | 90280-03024 | Key, Woodruff | Add to Inquiry | |
| 36 | 93604-18080 | Pin, Dowel | Add to Inquiry | |
| 37 | 97095-06040 | Bolt | Add to Inquiry | |
| 38 | 92995-06600 | Washer | Add to Inquiry | |
| 39 | Drive Shaft Comp. | Add to Inquiry | ||
| 40 | 647-45551-00 | Pinion | Add to Inquiry | |
| 41 | Shim | Add to Inquiry | ||
| 42 | 99001-07600 | Circlip | Add to Inquiry | |
| 43 | Shim | Add to Inquiry | ||
| 44 | 647-45560-00 | Gear | Add to Inquiry | |
| 45 | 90201-13198 | Washer, Plate | Add to Inquiry | |
| 46 | 647-45567-00 | Shim (T:0.10mm) | Add to Inquiry | |
| 47 | 647-45570-01 | Gear | Add to Inquiry | |
| 48 | 90201-15229 | Washer, Plate | Add to Inquiry | |
| 49 | Shim | Add to Inquiry | ||
| 50 | 655-45631-00 | Clutch, Dog | Add to Inquiry | |
| 51 | 93605-29098 | Pin, Dowel | Add to Inquiry | |
| 52 | 93440-30040 | Circlip | Add to Inquiry | |
| 53 | 90501-12M61 | Spring, Compression | Add to Inquiry | |
| 54 | 654-45635-00 | Plunger, Shift | Add to Inquiry | |
| 55 | 677-45611-01 | Shaft, Propeller | Add to Inquiry | |
| 56 | 90250-05036 | Pin, Straight | Add to Inquiry | |
| 57 | 655-44147-00 | Boot, Shift Rod | Add to Inquiry | |
| 58 | Shift Cam Assy | Add to Inquiry |
