Rectifier / Ignition Coil

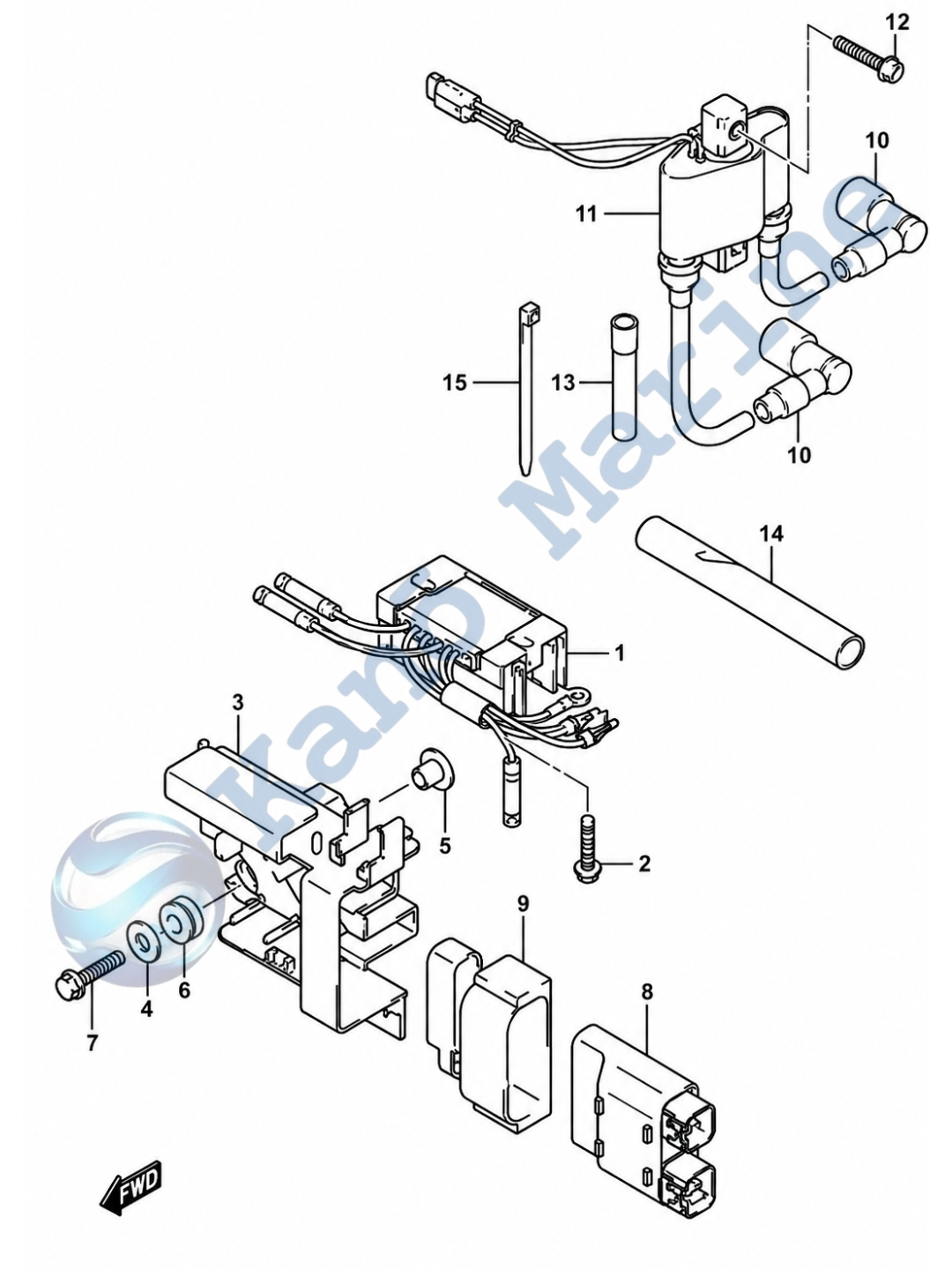

OEM Suzuki DF8A / DF9.9A rectifier and ignition coil exploded diagram and genuine part numbers.
Parts List
| Ref | Part No | Description | Qty | |
|---|---|---|---|---|
| 1 | 32800-99J00 | RECTIFIER/REGULATOR ASSY | ||
| 2 | 01550-06257 | BOLT | ||
| 3 | 32890-99J00 | HOLDER, ELECTRIC PARTS | ||
| 4 | 09160-06084 | WASHER (6.5X18X1.6) | ||
| 5 | 09169-06062 | WASHER | ||
| 6 | 09320-09016 | CUSHION | ||
| 7 | 01550-06257 | BOLT | ||
| 8 | CDI UNIT | |||
| 9 | 32980-99J00 | CUSHION, CDI | ||
| 10 | 33500-07H00 | CAP, SPARK PLUG | ||
| 11 | 33410-99J00 | COIL, IGNITION | ||
| 12 | 01550-06257 | BOLT | ||
| 13 | 33833-94JL0 | TUBE, IGN COIL LEAD (L:120) | ||
| 14 | 33833-94J10 | PROTECTOR, HIGH TENSION (L:50) | ||
| 15 | 09407-14407 | CLAMP (L:145) |
