Camshaft

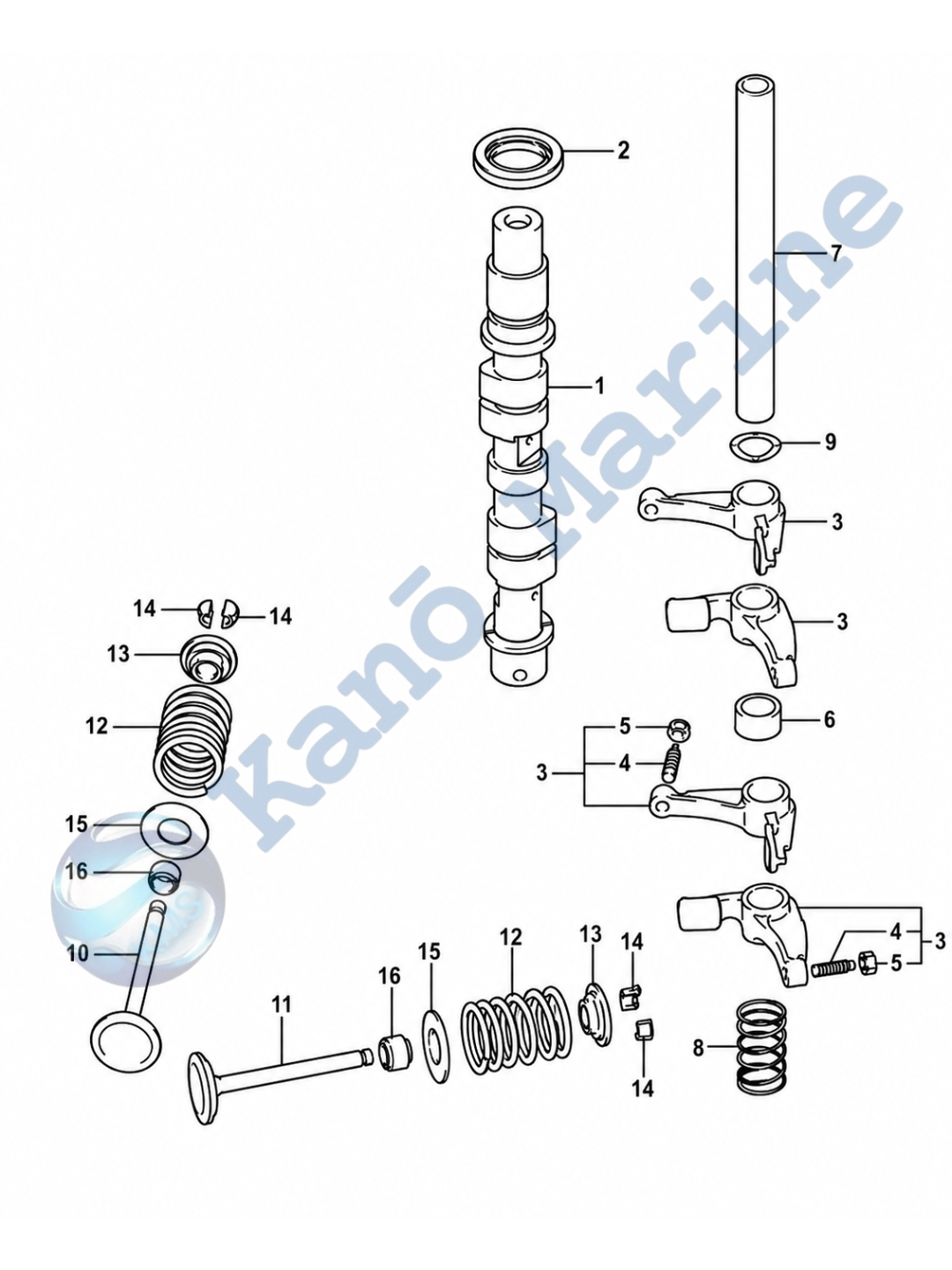

OEM Suzuki DF9.9A/B camshaft exploded diagram and genuine part numbers.
Parts List
| Ref | Part No | Description | Qty | |
|---|---|---|---|---|
| 1 | CAMSHAFT / CAMSHAFT ASSY | |||
| 2 | 09283-21009 | OIL SEAL (19.7X33X6) | ||
| 3 | 12840-99J00 | ARM, ROCKER | ||
| 4 | 12842-49201 | SCREW, TAPPET ADJUSTING | ||
| 5 | 12843-27A00 | NUT, TAPPET ADJUSTING | ||
| 6 | 12843-99J00 | SPACER, ROCKER ARM (13X18X9) | ||
| 7 | 12861-99J00 | SHAFT, ROCKER ARM (9X13X142.5) | ||
| 8 | 12891-99J00 | SPRING, ROCKER SHAFT | ||
| 9 | 09164-13008 | WASHER | ||
| 10 | 12911-99J00 | VALVE, INTAKE | ||
| 11 | 12915-99J00 | VALVE, EXHAUST | ||
| 12 | 12921-99J00 | SPRING, VALVE | ||
| 13 | 12931-09420 | RETAINER, VALVE SPRING | ||
| 14 | 12932-09G00 | COTTER, VALVE | ||
| 15 | 12933-71C00 | SEAT, VALVE SPRING | ||
| 16 | 09289-05008 | OIL SEAL (5X10.5X8.4) |
