Timing Belt

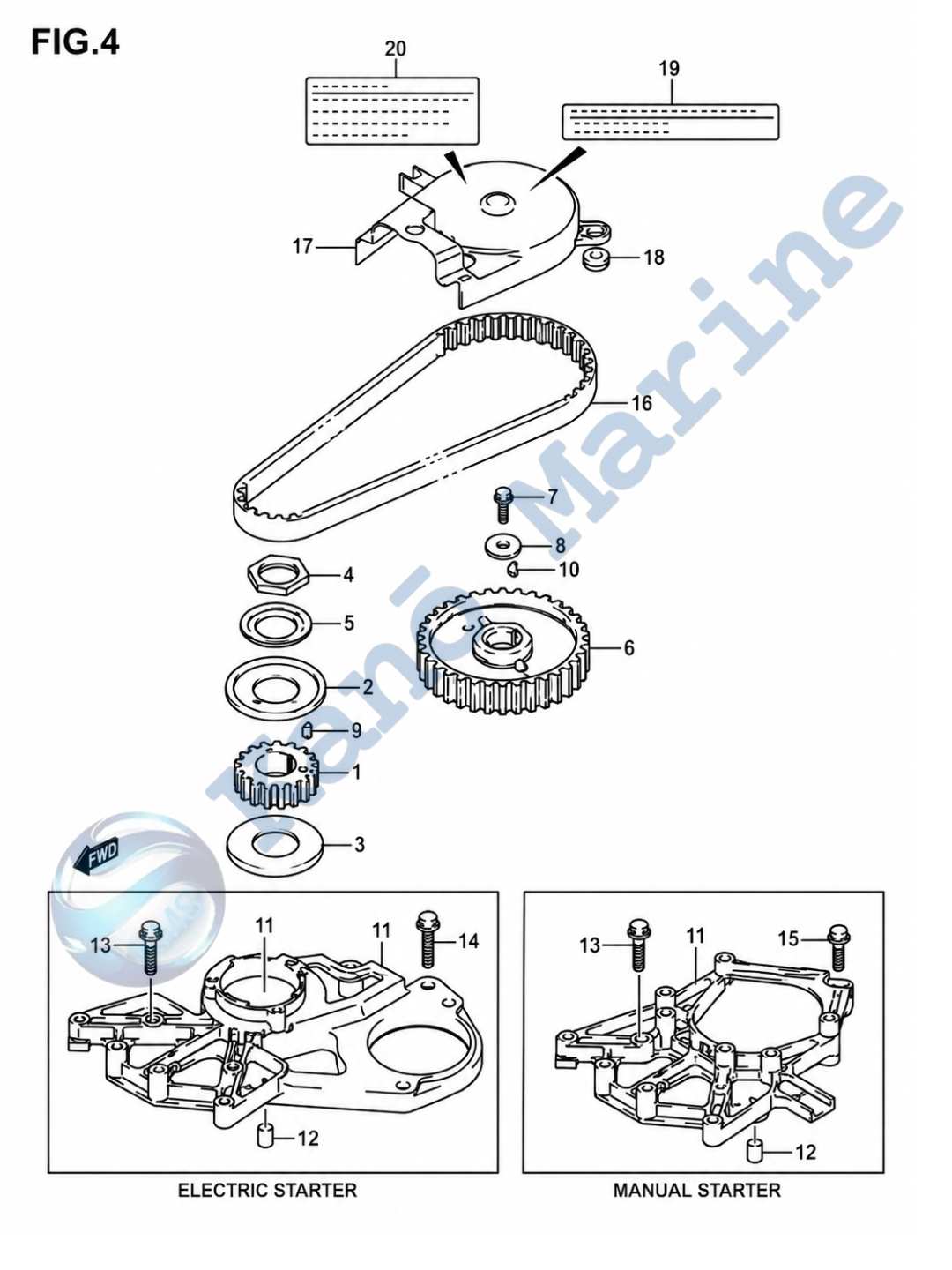

OEM Suzuki DF9.9A/B timing belt exploded diagram and genuine part numbers.
Parts List
| Ref | Part No | Description | Qty | |
|---|---|---|---|---|
| 1 | 12631-99JL0 | PULLEY, CRANKSHAFT | ||
| 2 | 12635-99J00 | GUIDE, TIMING BELT (UPPER) | ||
| 3 | 12636-99J00 | GUIDE, TIMING BELT (LOWER) | ||
| 4 | 12637-99J00 | NUT, TIMING PULLEY (M24) | ||
| 5 | 12638-99J00 | WASHER, PULLEY NUT LOCK | ||
| 6 | 12741-93EL0 | PULLEY, CAMSHAFT | ||
| 7 | 09103-06267 | BOLT (6X18) | ||
| 8 | 09160-06150 | WASHER (6.5X24X4) | ||
| 9 | 08341-31039 | KEY | ||
| 10 | 08341-31039 | KEY | ||
| 11-1 | 12625-99J00 | BASE, STATOR | ||
| 11-2 | 12625-99J10 | BASE, STATOR | ||
| 12 | 04211-09149 | PIN | ||
| 13 | 01550-06307 | BOLT | ||
| 14 | 01550-08307 | BOLT | ||
| 15 | 01550-06127 | BOLT | ||
| 16 | 12761-99J00 | BELT, TIMING | ||
| 17 | 12764-99J00 | COVER, TIMING BELT | ||
| 18 | 09308-08011 | GROMMET | ||
| 19 | 61493-99J00 | LABEL, CLEARANCE | ||
| 20 | 61494-99J00 | LABEL, OIL |
