Water Pump

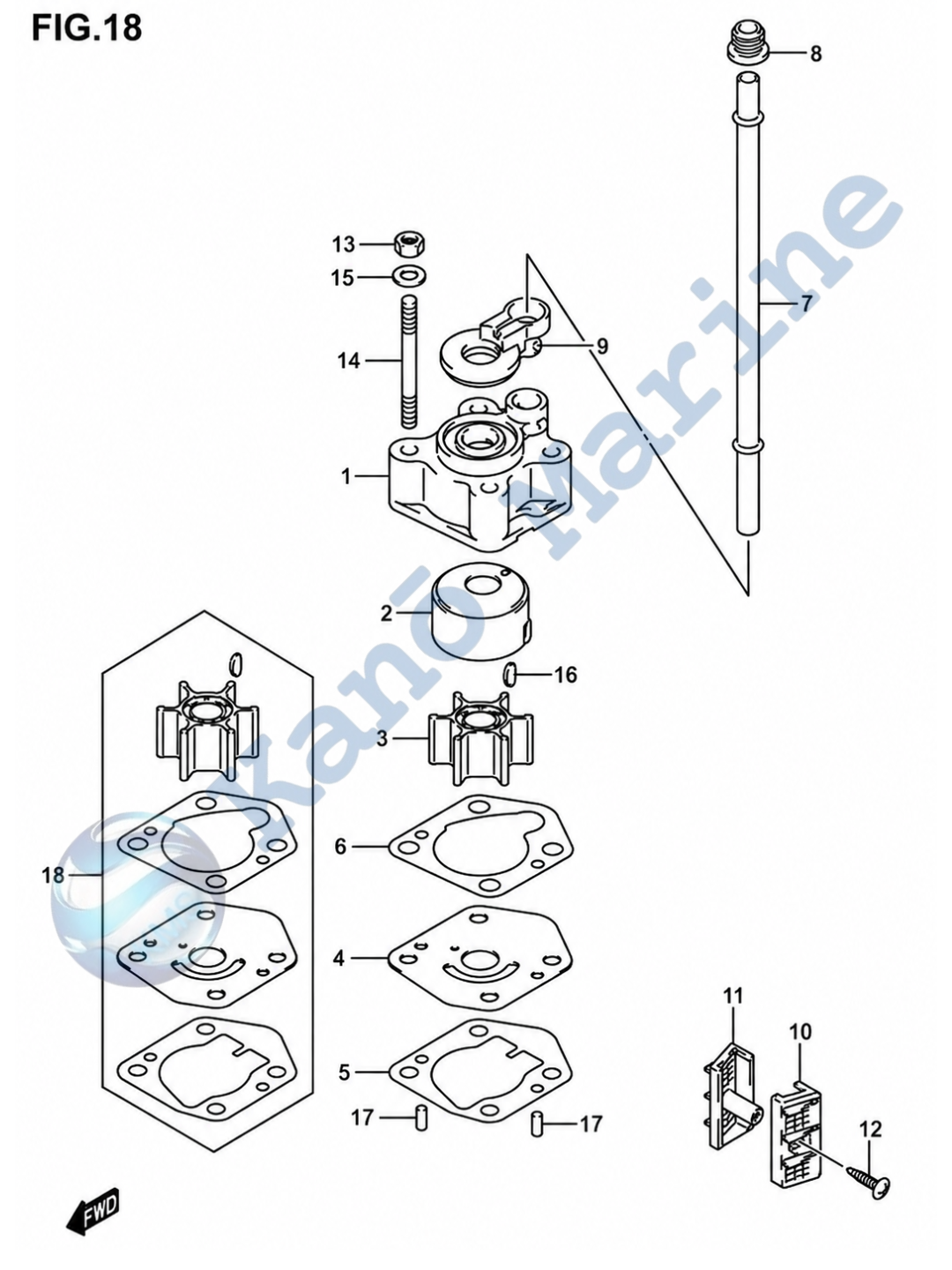

OEM Suzuki DF9.9A/B water pump exploded diagram and genuine part numbers.
Parts List
| Ref | Part No | Description | Qty | |
|---|---|---|---|---|
| 1 | 17411-94J00 | CASE, WATER PUMP | ||
| 2 | 17413-94J00 | SLEEVE, WATER PUMP CASE | ||
| 3 | 17467-93J03 | IMPELLER, WATER PUMP | ||
| 4 | 17471-99J00 | PANEL, PUMP CASE UNDER | ||
| 5 | 17472-99J00 | GASKET, PUMP CASE PANEL | ||
| 6 | 17473-94J00 | GASKET, WATER PUMP CASE | ||
| 7 | TUBE, WATER | |||
| 8 | 17563-94J00 | GROMMET, WATER TUBE | ||
| 9 | 17564-99J00 | BUSH, WATER PUMP CASE | ||
| 10 | 17631-99J20 | FILTER, WATER PORT SIDE | ||
| 11 | 17632-99J20 | FILTER, WATER STBD SIDE | ||
| 12 | 03141-0416A | SCREW | ||
| 13 | 29141-93J00 | NUT, WATER PUMP CASE | ||
| 14 | 09180-06141 | STUD BOLT | ||
| 15 | 09160-06082 | WASHER (6.5X13X1.0) | ||
| 16 | 09420-03005 | KEY | ||
| 17 | 09202-04008 | PIN | ||
| 18 | 17400-99J00 | KIT, WATER PUMP REPAIR |
