Fuel Pump

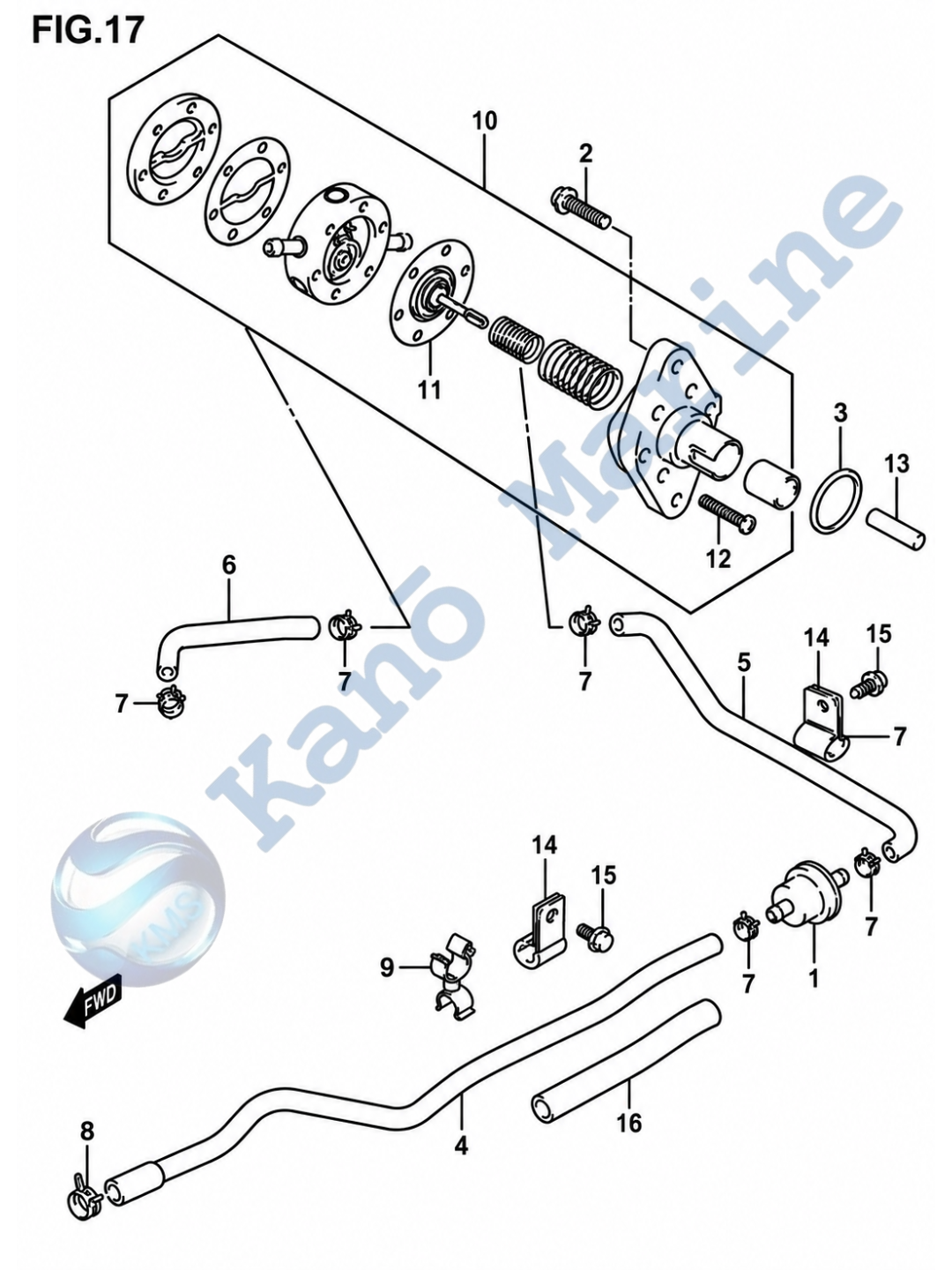

OEM Suzuki DF9.9A/B fuel pump exploded diagram and genuine part numbers.
Parts List
| Ref | Part No | Description | Qty | |
|---|---|---|---|---|
| 1 | 15410-98500 | FILTER, FUEL | ||
| 2 | 01550-06257 | BOLT | ||
| 3 | 09280-26005 | O RING (D:2.4,ID:26.2) | ||
| 4 | 15192-99J11 | HOSE, FUEL (CONN TO FILTER) | ||
| 5 | 15193-99J11 | HOSE, FUEL (FILTER TO PUMP) | ||
| 6 | 15191-99J11 | HOSE, FUEL (PUMP TO CARB) | ||
| 7 | 09401-09404 | CLIP | ||
| 8 | 09401-11422 | CLIP | ||
| 9 | 09408-00054 | CLAMP | ||
| 10 | 15100-94J02 | PUMP ASSY, FUEL | ||
| 11 | 15170-94J02 | DIAPHRAGM SET | ||
| 12 | 15251-93E00 | SCREW | ||
| 13 | 15131-99J00 | ROD, FUEL PUMP | ||
| 14 | 09403-12406 | CLAMP | ||
| 15 | 01550-06127 | BOLT | ||
| 16 | 18498-99J00 | PROTECTOR, FUEL HOSE (100) |
