Generator

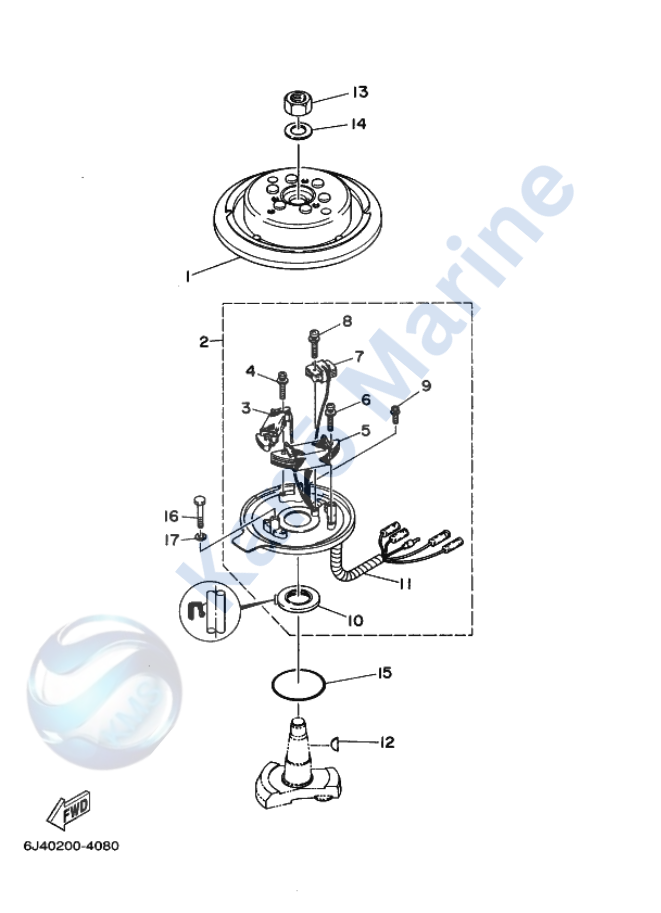

Exploded diagram and parts list for Yamaha 40HP Generator (E40GMHL – 2003)
Parts List
<| Ref | Part No | Description | Qty | |
|---|---|---|---|---|
| 1 | 6F5-85550-F2 | Rotor Assy | Add to Inquiry | |
| 2 | 6F6-85560-A1 | Base Assy | Add to Inquiry | |
| 3 | 6F5-85520-00 | Coil, Charge | Add to Inquiry | |
| 4 | 90159-05040 | Screw, With Washer | Add to Inquiry | |
| 5 | 6F5-85533-00 | Coil, Lighting | Add to Inquiry | |
| 6 | 90159-05040 | Screw, With Washer | Add to Inquiry | |
| 7 | 6F5-85580-00 | Coil, Pulser | Add to Inquiry | |
| 8 | 90159-04063 | Screw, With Washer | Add to Inquiry | |
| 9 | 90159-04035 | Screw, With Washer | Add to Inquiry | |
| 10 | 93102-35M18 | Oil Seal | Add to Inquiry | |
| 11 | 6F5-85515-00 | Lead Wire Assy | Add to Inquiry | |
| 12 | 90280-05015 | Key, Woodruff | Add to Inquiry | |
| 13 | 90170-20137 | Nut | Add to Inquiry | |
| 14 | 90201-21M18 | Washer, Plate | Add to Inquiry | |
| 15 | 93210-75M51 | O-Ring | Add to Inquiry | |
| 16 | 97095-06040 | Bolt | Add to Inquiry | |
| 17 | 92995-06600 | Washer | Add to Inquiry |
