Fuel Tank

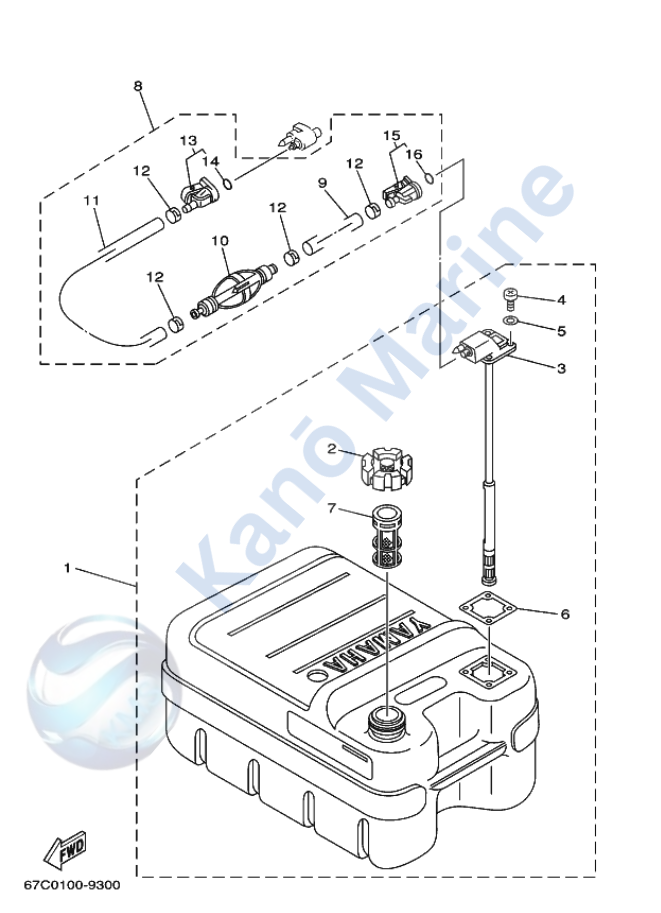

Exploded diagram and parts list for Yamaha 40HP Fuel Tank (E40GMHL – 2003)
Parts List
| Ref | Part No | Description | Qty | |
|---|---|---|---|---|
| 1 | 6YJ-24201-00 | Fuel Tank Assy (24L) | Add to Inquiry | |
| 2 | 6YJ-24610-00 | Cap Assy | Add to Inquiry | |
| 3 | 6YJ-24260-00 | Fuel Meter Assy | Add to Inquiry | |
| 4 | 98586-05016 | Screw, Pan Head | Add to Inquiry | |
| 5 | 6Y1-24329-00 | Seal | Add to Inquiry | |
| 6 | 6Y1-24268-00 | Gasket, Fuel Meter | Add to Inquiry | |
| 7 | 6YJ-24167-00 | Strainer | Add to Inquiry | |
| 8 | 61J-24306-02 | Fuel Pipe Comp. | Add to Inquiry | |
| 9 | 90445-11M06 | Hose (L2050) | Add to Inquiry | |
| 10 | 61J-24360-00 | Primer Pump Assy | Add to Inquiry | |
| 11 | 90445-11M05 | Hose (L850) | Add to Inquiry | |
| 12 | 650-24351-51 | Band | Add to Inquiry | |
| 13 | 6G1-24305-03 | Fuel Pipe Joint Comp. | Add to Inquiry | |
| 14 | 93210-08287 | O-Ring | Add to Inquiry | |
| 15 | 6Y1-24305-04 | Fuel Pipe Joint Comp. | Add to Inquiry | |
| 16 | 93210-08287 | O-Ring (Second) | Add to Inquiry |
