Bottom Cowling

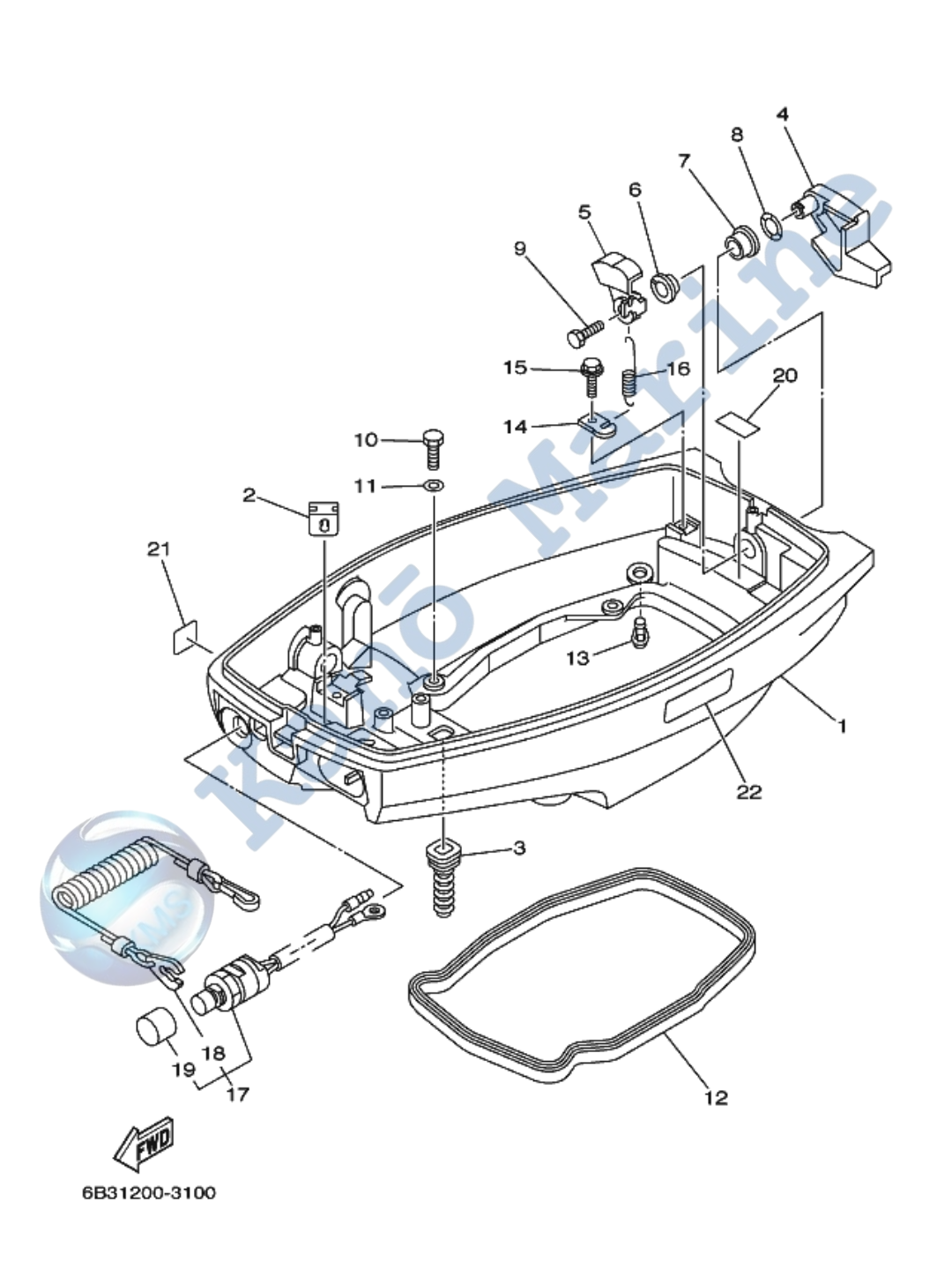

Exploded diagram and parts list for Yamaha E15D Outboard Motor (2003) - Bottom Cowling
Parts List
| Ref | Part No | Description | Qty | |
|---|---|---|---|---|
| 1 | 6B4-42711-00-4D | COWLING, BOTTOM | Add to Inquiry | |
| 2 | 61N-26326-00 | GROMMET | Add to Inquiry | |
| 3 | 6B4-42727-00 | GROMMET | Add to Inquiry | |
| 4 | 6B4-42815-00-4D | LEVER, CLAMP | Add to Inquiry | |
| 5 | 6B4-42816-00 | LEVER, CLAMP | Add to Inquiry | |
| 6 | 90386-12M45 | BUSH | Add to Inquiry | |
| 7 | 90386-12MA2 | BUSH | Add to Inquiry | |
| 8 | 90206-12052 | WASHER, WAVE | Add to Inquiry | |
| 9 | 97095-06014 | BOLT | Add to Inquiry | |
| 10 | 97095-06016 | BOLT | Add to Inquiry | |
| 11 | 92995-06600 | WASHER | Add to Inquiry | |
| 12 | 6B4-42716-00 | RUBBER, SEAL 1 | Add to Inquiry | |
| 13 | 6H3-44391-01 | NIPPLE, HOSE | Add to Inquiry | |
| 14 | 66T-43144-00 | HOOK, SPRING | Add to Inquiry | |
| 15 | 90109-06M80 | BOLT | Add to Inquiry | |
| 16 | 90506-18009 | SPRING, TENSION | Add to Inquiry | |
| 17 | 689-82575-04 | ENGINE STOP SWITCH ASSY | Add to Inquiry | |
| 18 | 682-82556-00 | STOPPER | Add to Inquiry | |
| 19 | 689-8257Y-00 | CAP | Add to Inquiry | |
| 20 | Mark 1 | Add to Inquiry | ||
| 21 | 6A1-28176-00 | LABEL, CAUTION (CARIB) | Add to Inquiry | |
| 22 | 6E3-8257H-00 | PLATE, MARK (CARIB) | Add to Inquiry |
