Carburetor

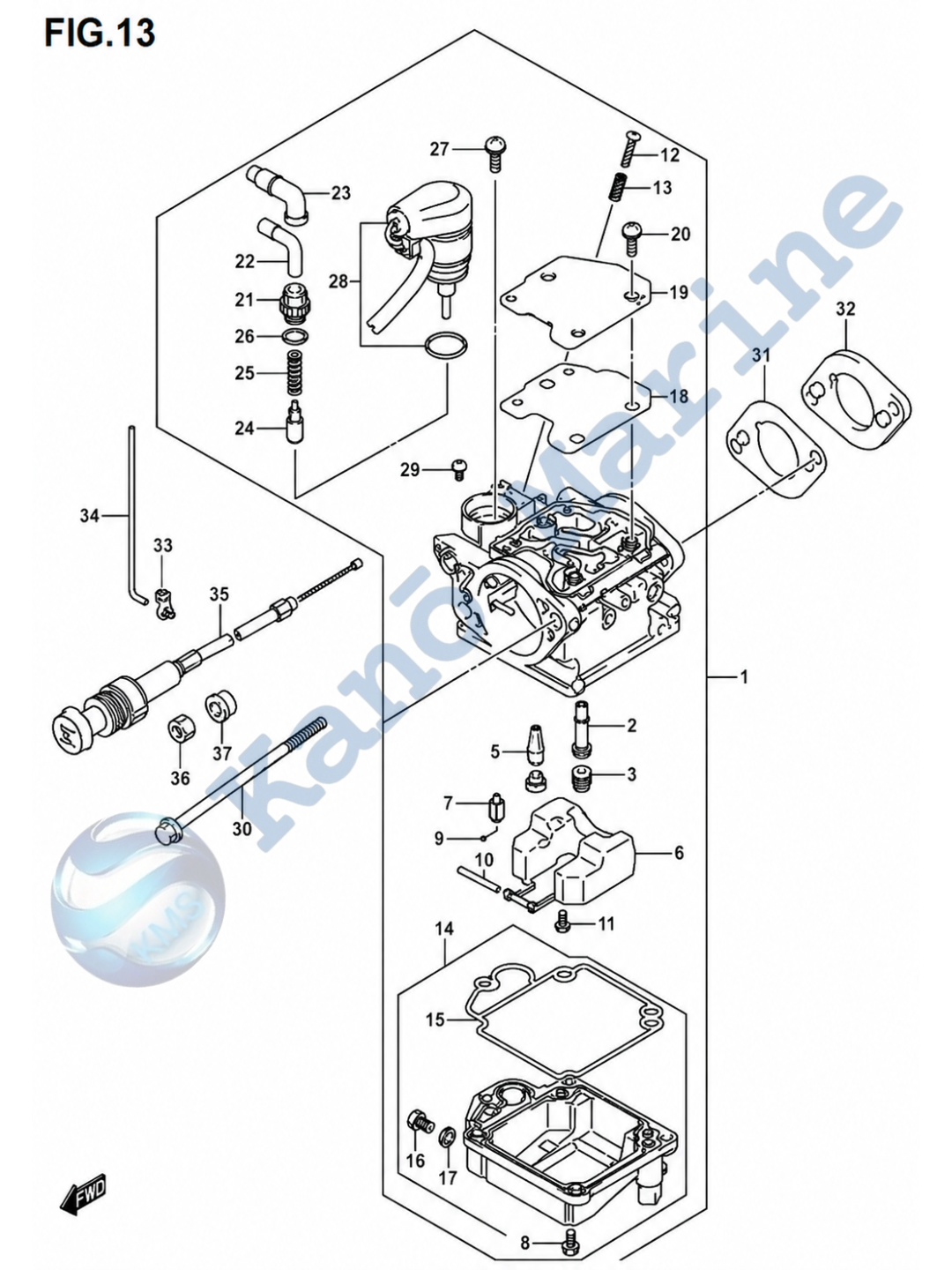

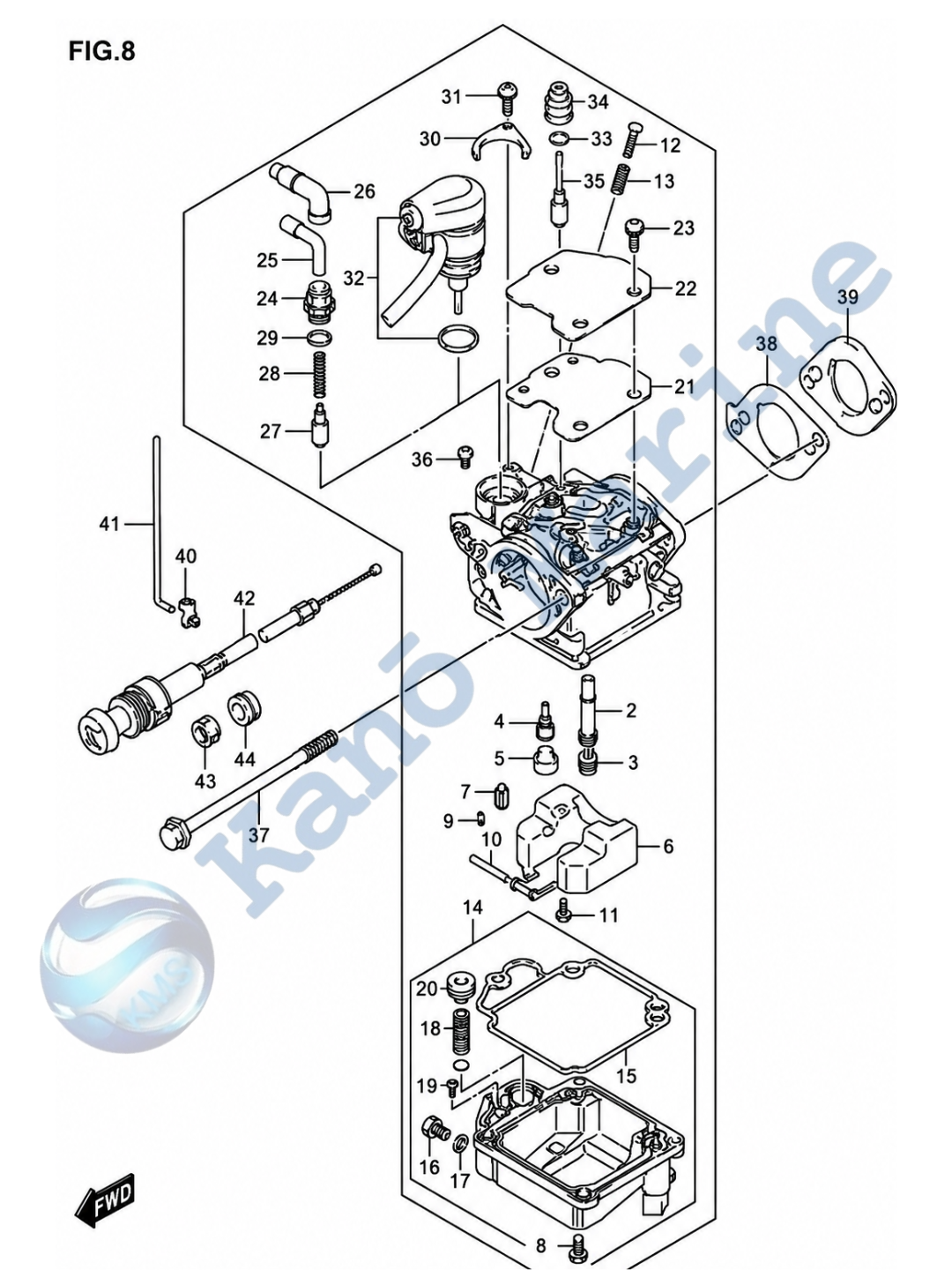

OEM Suzuki DF9.9A/B carburetor exploded diagram and genuine part numbers.
Parts List
| Ref | Part No | Description | Qty | |
|---|---|---|---|---|
| 1 | CARBURETOR ASSY | |||
| 2 | 13236-99J20 | MAIN NOZZLE | ||
| 3 | JET | |||
| 4 | JET | |||
| 5 | 13239-94J00 | CAP, LEVER | ||
| 6 | 13250-99J00 | FLOAT | ||
| 7 | 13370-94J00 | VALVE, FLOAT | ||
| 8 | 13247-94J00 | SCREW | ||
| 9 | 13375-26E00 | CLIP | ||
| 10 | 13254-94J00 | PIN, ARM | ||
| 11 | 13802-94J00 | SCREW | ||
| 12 | 13534-94J00 | SCREW, STOP | ||
| 13 | 13268-94J00 | SPRING | ||
| 14 | CHAMBER ASSY, FRONT | |||
| 15 | 13251-99J00 | GASKET, FRONT CHAMBER | ||
| 16 | 13279-99J00 | SCREW, DRAIN | ||
| 17 | 13275-99J00 | WASHER, DRAIN | ||
| 18 | 13441-99J00 | SPRING | ||
| 19 | 13443-99J00 | SCREW, SPECIAL | ||
| 20 | 13493-99J00 | PLUNGER | ||
| 21 | 13283-99J00 | PACKING | ||
| 22 | 13282-99J00 | PLATE | ||
| 23 | 13367-94J00 | SCREW | ||
| 24 | 13361-99J00 | HOLDER, CABLE | ||
| 25 | 13362-94J00 | GUIDE, CABLE | ||
| 26 | 13363-94J00 | SEAL RING, CABLE | ||
| 27 | 13364-94J00 | ADJUSTER, VALVE | ||
| 28 | 13365-94J00 | SPRING | ||
| 29 | 13295-14G00 | O-RING | ||
| 30 | 13428-06F30 | PLATE | ||
| 31 | 13367-94J00 | SCREW | ||
| 32 | 13368-99J00 | CAP, STARTER | ||
| 33 | 13494-94J00 | CLIP | ||
| 34 | 13495-94J00 | CAP | ||
| 35 | 13496-99J00 | ROD LINK | ||
| 36 | 13281-99J00 | SCREW, PAN HEAD | ||
| 37 | 09103-06276 | BOLT (6X10) | ||
| 38 | 13125-99J00 | GASKET, CARBURETOR | ||
| 39 | 13124-99J00 | INSULATOR, CARBURETOR | ||
| 40 | 13346-91J00 | CONNECTOR, CHOKE ROD | ||
| 41 | 13513-99J00 | ROD, CHOKE | ||
| 42 | 13640-99J00 | ADJUSTER | ||
| 43 | 09159-14032 | NUT |
