Remote Control Assy

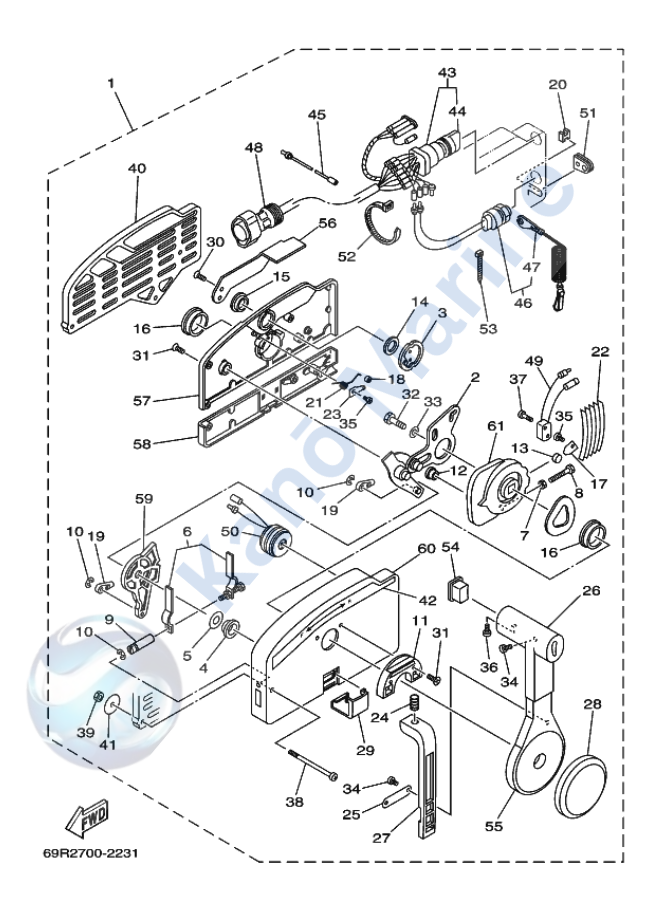

Exploded diagram and parts list for Yamaha 40HP Remote Control Assy (E40GMHL – 2003)
Parts List
| Ref | Part No | Description | Qty | |
|---|---|---|---|---|
| 1 | 703-48230-15 | Remote Control Assy | Add to Inquiry | |
| 2 | 703-48261-11 | Arm Throttle | Add to Inquiry | |
| 3 | 703-48153-00 | Shaft Free Accel | Add to Inquiry | |
| 4 | 703-48235-00 | Bushing | Add to Inquiry | |
| 5 | 703-48268-00 | Spacer | Add to Inquiry | |
| 6 | 703-48264-00 | Throttle Friction | Add to Inquiry | |
| 7 | 95380-05600 | Nut | Add to Inquiry | |
| 8 | 97380-05025 | Bolt | Add to Inquiry | |
| 9 | 703-48265-00 | Shaft Friction | Add to Inquiry | |
| 10 | 93430-06024 | Circlip | Add to Inquiry | |
| 11 | 703-48245-00 | Plate Lock | Add to Inquiry | |
| 12 | 703-48252-00 | Roller Cam | Add to Inquiry | |
| 13 | 701-48248-00 | Roller Free Accel | Add to Inquiry | |
| 14 | 703-48198-00 | Washer Wave | Add to Inquiry | |
| 15 | 703-48243-00 | Bushing 3 | Add to Inquiry | |
| 16 | 703-48236-00 | Bushing 1 | Add to Inquiry | |
| 17 | 703-48189-00 | Retainer | Add to Inquiry | |
| 18 | 703-48234-00 | Roller Detent | Add to Inquiry | |
| 19 | 703-48345-01 | Cable End Remote Control | Add to Inquiry | |
| 20 | 703-48358-00 | Anchor Cable | Add to Inquiry | |
| 21 | 703-48244-00 | Spring Free Accel | Add to Inquiry | |
| 22 | 703-48238-00 | Spring Detent | Add to Inquiry | |
| 23 | 703-48246-00 | Spacer 2 | Add to Inquiry | |
| 24 | 703-48227-00 | Spring Neutral Lock | Add to Inquiry | |
| 25 | 703-48226-00 | Plate Stopper | Add to Inquiry | |
| 26 | 703-48247-00 | Spacer 3 | Add to Inquiry | |
| 27 | 703-48241-00 | Lever Shift | Add to Inquiry | |
| 28 | 703-48242-00 | Lever Throttle | Add to Inquiry | |
| 29 | 703-48239-00 | Cam Plate | Add to Inquiry | |
| 30 | 703-48240-00 | Guide Plate | Add to Inquiry | |
| 31 | 90119-05M09 | Bolt With Washer | Add to Inquiry | |
| 32 | 92990-05600 | Washer Plate | Add to Inquiry | |
| 33 | 703-48237-00 | Pin Detent | Add to Inquiry | |
| 34 | 93450-08012 | Circlip | Add to Inquiry | |
| 35 | 703-48249-00 | Stopper Lever | Add to Inquiry | |
| 36 | 703-48250-00 | Stopper Plate | Add to Inquiry | |
| 37 | 703-48251-00 | Guide Roller | Add to Inquiry | |
| 38 | 90149-05M05 | Screw | Add to Inquiry | |
| 39 | 90201-05M02 | Washer Plate | Add to Inquiry | |
| 40 | 703-48255-00 | Spring Roller | Add to Inquiry | |
| 41 | 703-48256-00 | Bracket Lock | Add to Inquiry | |
| 42 | 703-48257-00 | Spring Lock | Add to Inquiry | |
| 43 | 703-48258-00 | Pin Lock | Add to Inquiry | |
| 44 | 703-48259-00 | Cam Stopper | Add to Inquiry | |
| 45 | 90170-05008 | Nut | Add to Inquiry | |
| 46 | 90209-05001 | Washer | Add to Inquiry | |
| 47 | 703-48260-00 | Bracket Cable | Add to Inquiry | |
| 48 | 703-48262-00 | Pin Cable | Add to Inquiry | |
| 49 | 703-48263-00 | Guide Cable | Add to Inquiry | |
| 50 | 90159-05017 | Screw With Washer | Add to Inquiry | |
| 51 | 92990-05100 | Washer Spring | Add to Inquiry | |
| 52 | 703-48266-00 | Stopper Cable | Add to Inquiry | |
| 53 | 703-48267-00 | Guide Stopper | Add to Inquiry | |
| 54 | 93490-08010 | Clip | Add to Inquiry | |
| 55 | 703-48269-00 | Bracket Stopper | Add to Inquiry | |
| 56 | 703-48270-00 | Lever Neutral | Add to Inquiry | |
| 57 | 703-48271-00 | Spring Neutral | Add to Inquiry | |
| 58 | 703-48272-00 | Pin Neutral | Add to Inquiry | |
| 59 | 703-48273-00 | Bracket Neutral | Add to Inquiry | |
| 60 | 90149-06M02 | Screw Pan Head | Add to Inquiry | |
| 61 | 90201-06M01 | Washer Plate | Add to Inquiry |
