Control (2)

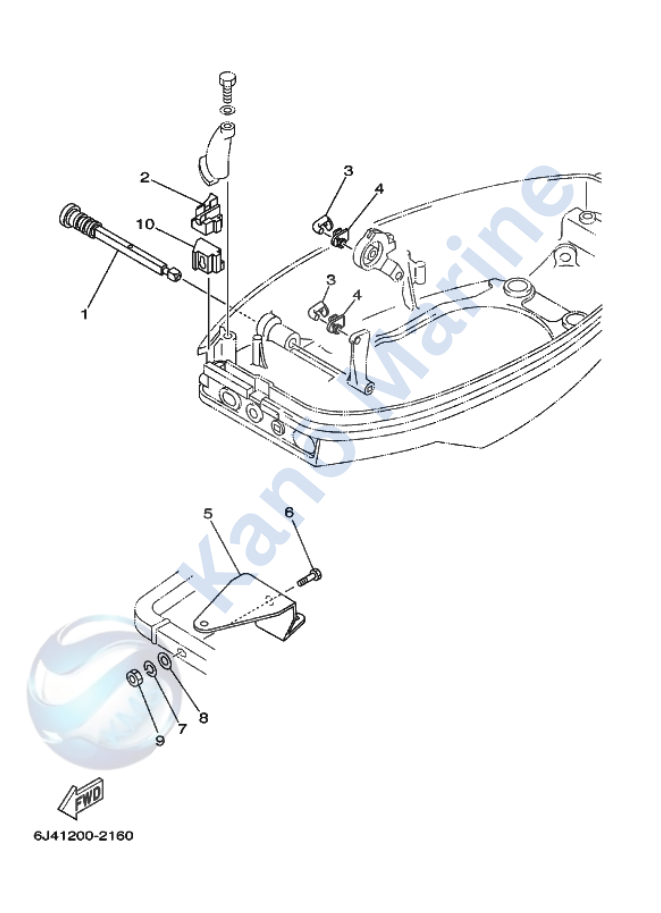

Exploded diagram and parts list for Yamaha 40HP Control (2) (E40GMHL – 2003)
Parts List
| Ref | Part No | Description | Qty | |
|---|---|---|---|---|
| 1 | 6F5-44111-50 | Handle, Gear Shift | Add to Inquiry | |
| 2 | 6F5-48538-00 | Clamp, Cable 1 | Add to Inquiry | |
| 3 | 6F5-48345-00 | Cable, Remote Control 2 | Add to Inquiry | |
| 4 | 6F5-41237-00 | Joint, Link | Add to Inquiry | |
| 5 | 676-48511-01 | Hook, Steering | Add to Inquiry | |
| 6 | 97075-10040 | Bolt | Add to Inquiry | |
| 7 | 92990-10100 | Washer, Spring | Add to Inquiry | |
| 8 | 92990-10600 | Washer, Plate | Add to Inquiry | |
| 9 | 95380-10600 | Nut | Add to Inquiry | |
| 10 | 6F5-42725-50 | Grommet | Add to Inquiry |
