Thermostat

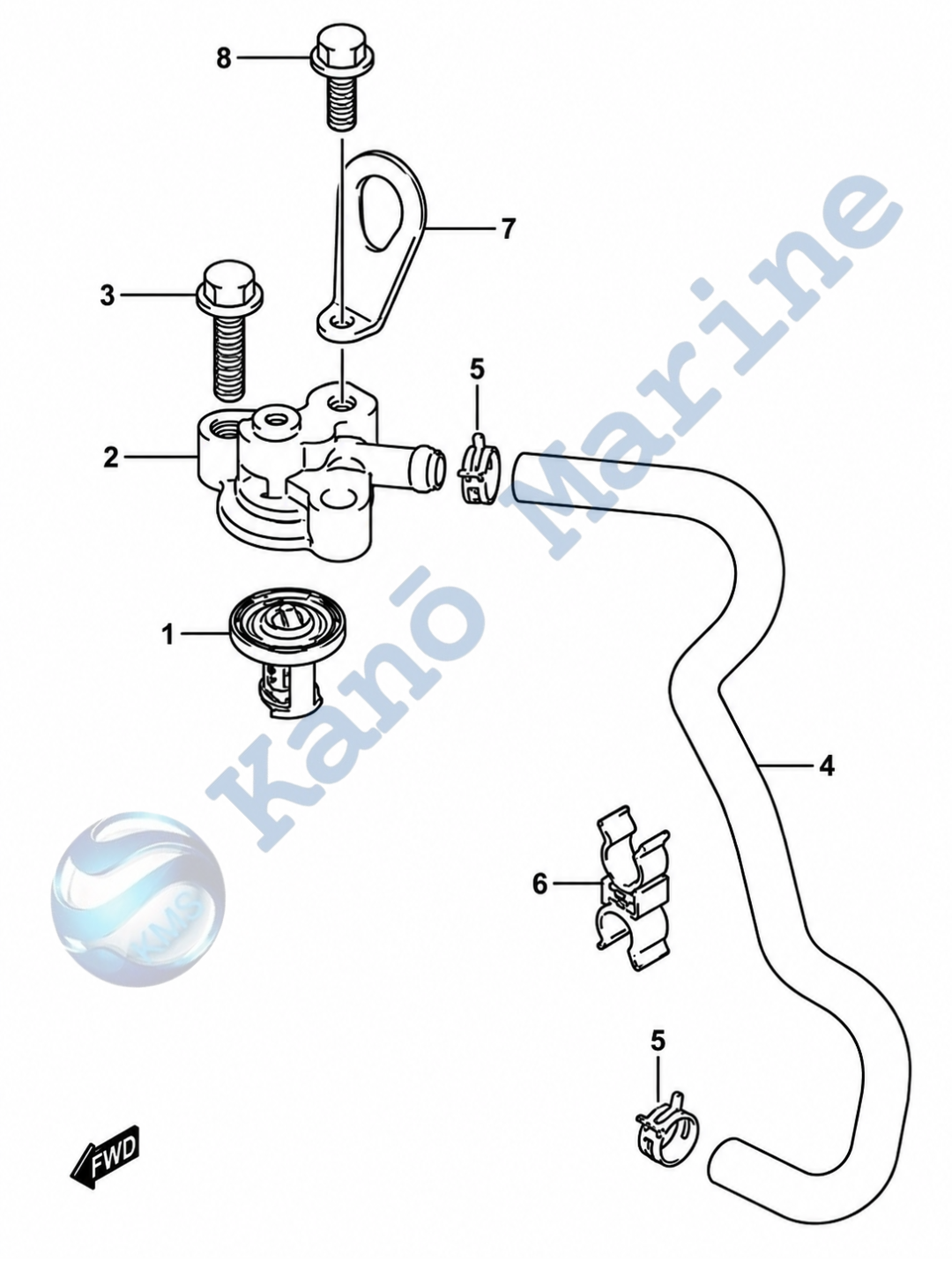

OEM Suzuki DF9.9A/B thermostat exploded diagram and genuine part numbers.
Parts List
| Ref | Part No | Description | Qty | |
|---|---|---|---|---|
| 1 | 17670-94J00 | THERMOSTAT (60℃) | ||
| 2 | 17681-99J00 | COVER, THERMOSTAT | ||
| 3 | 01550-08307 | BOLT | ||
| 4 | 11197-99J00 | HOSE, WATER RETURN | ||
| 5 | 09401-12413 | CLIP | ||
| 6 | 09408-00173 | CLAMP | ||
| 7 | 11291-91B50 | HOOK, ENGINE | ||
| 8 | 01550-08207 | BOLT |
