Clamp Bracket

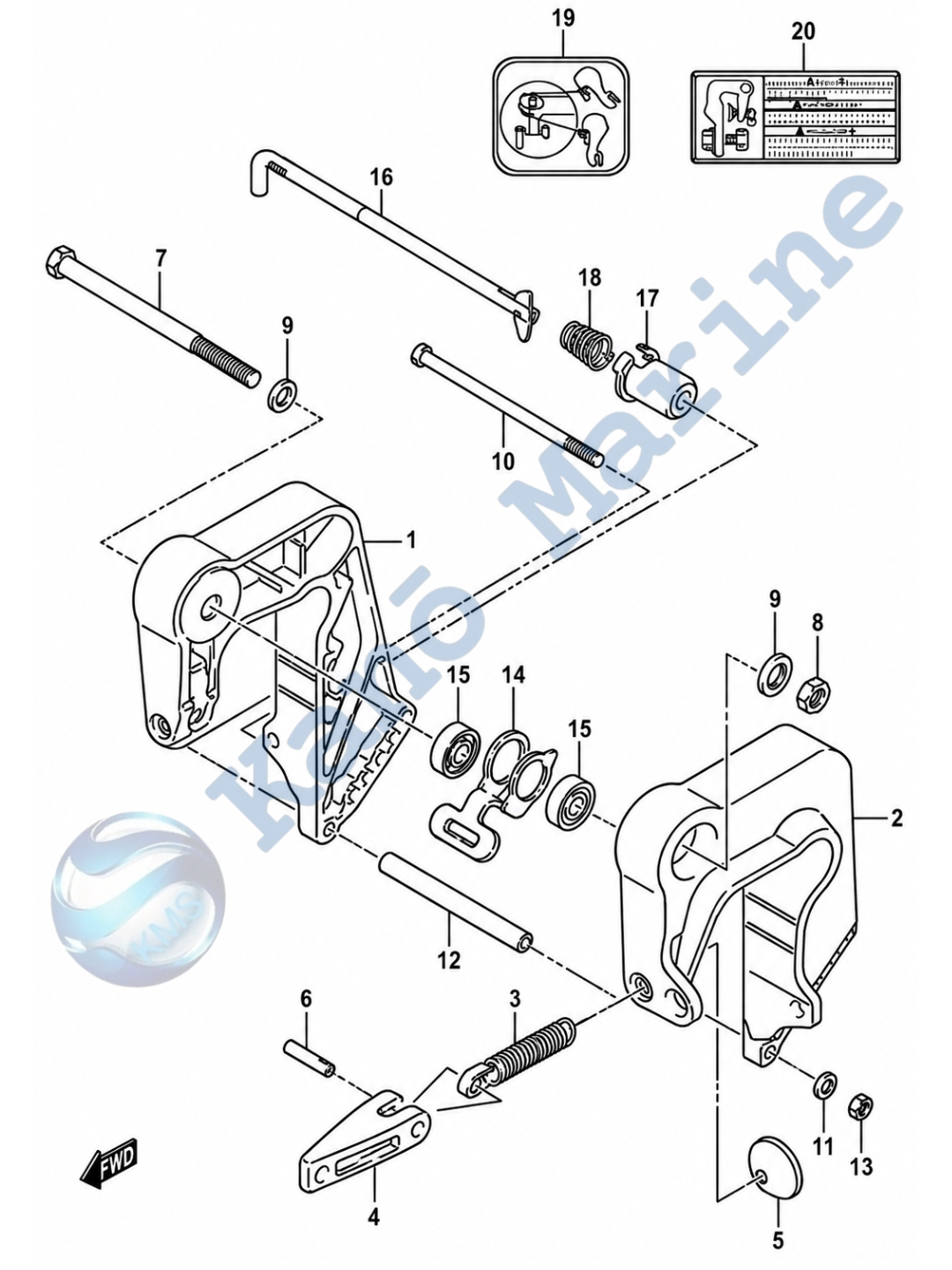

OEM Suzuki DF8A clamp bracket exploded diagram and genuine part numbers.
Parts List
| Ref | Part No | Description | Qty | |
|---|---|---|---|---|
| 1 | 41111-99J00-0EP | BRACKET, CLAMP STBD (BLACK) | ||
| 2 | 41121-99J00-0EP | BRACKET, CLAMP PORT (BLACK) | ||
| 3 | 41211-99JL0 | SCREW, CLAMP | ||
| 4 | 41212-91J00 | HANDLE, CLAMP | ||
| 5 | 41213-98100 | PLATE, CLAMP | ||
| 6 | 09205-06007 | SPRING PIN (6X25) | ||
| 7 | 09100-10312 | BOLT (10X146) | ||
| 8 | 09159-10050 | NUT | ||
| 9 | 09160-10082 | WASHER (10.5X19X2) | ||
| 10 | 09100-06125 | BOLT (6X140) | ||
| 11 | 09160-06082 | WASHER (6.5X13X1.0) | ||
| 12 | 09180-06357 | SPACER (6.5X10.5X104) | ||
| 13 | 29141-93J00 | NUT, CLAMP BRKT LWF (M6) | ||
| 14 | 45261-94J00 | LEVER, RELEASE | ||
| 15 | 09306-10023 | BUSH | ||
| 16 | 45420-99J00 | PIN, TILT LOCK | ||
| 17 | 45425-94J00 | STOPPER, TILT LOCK PIN | ||
| 18 | 09441-17001 | SPRING | ||
| 19 | 45269-94J20 | MARK, REVERSE LOCK | ||
| 20 | 69911-91J00 | MARK, CLAMP BRACKET | ||
| 21 | 41210-99JL1 | SCREW SET, CLAMP |
