Lower Casing & Drive (1)

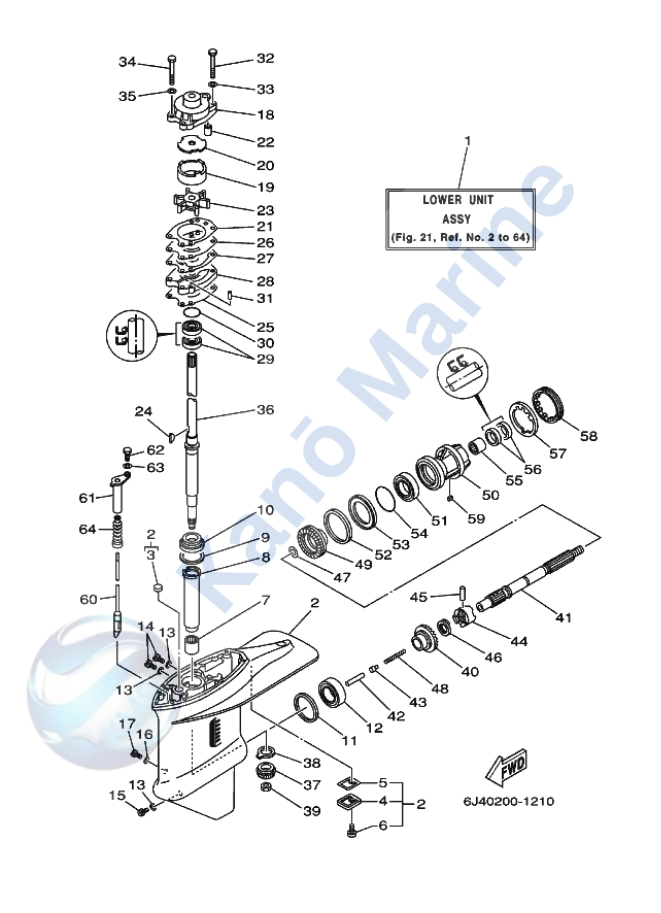

Exploded diagram and parts list for Yamaha 40HP Lower Casing & Drive (1)(E40GMHL – 2003)
Parts List
| Ref | Part No | Description | Qty | |
|---|---|---|---|---|
| 1 | Lower Unit Assembly | Add to Inquiry | ||
| 2 | 6J4-W4531-01-4D | Casing, Lower | Add to Inquiry | |
| 3 | 90338-22007 | Plug | Add to Inquiry | |
| 4 | 679-45321-02 | Plate | Add to Inquiry | |
| 5 | 679-45315-A1 | Packing, Lower Casing | Add to Inquiry | |
| 6 | 97880-06016 | Screw, Pan Head | Add to Inquiry | |
| 7 | 93315-32224 | Bearing | Add to Inquiry | |
| 8 | 679-45336-00 | Sleeve, Drive Shaft | Add to Inquiry | |
| 9 | Shim | Add to Inquiry | ||
| 10 | 93332-00001 | Bearing | Add to Inquiry | |
| 11 | Shim | Add to Inquiry | ||
| 12 | 93332-00003 | Bearing | Add to Inquiry | |
| 14 | 90340-08002 | Plug, Straight Screw | Add to Inquiry | |
| 15 | 688-45341-10 | Plug, Drain | Add to Inquiry | |
| 16 | 90430-06M03 | Gasket | Add to Inquiry | |
| 17 | 90149-06M00 | Screw | Add to Inquiry | |
| 18 | 676-44311-00 | Housing, Water Pump | Add to Inquiry | |
| 19 | 676-44322-40 | Insert, Cartridge | Add to Inquiry | |
| 20 | 676-44321-40 | Inner Plate, Cartridge | Add to Inquiry | |
| 21 | 676-44315-A1 | Gasket, Water Pump | Add to Inquiry | |
| 22 | 663-44366-00 | Damper, Water Seal | Add to Inquiry | |
| 23 | 6F5-44352-00 | Impeller | Add to Inquiry | |
| 24 | 90280-04M00 | Key, Woodruff | Add to Inquiry | |
| 25 | 679-44316-A1 | Gasket, Water Pump | Add to Inquiry | |
| 26 | 676-44323-40 | Outer Plate, Cartridge | Add to Inquiry | |
| 27 | 676-44324-A1 | Gasket, Cartridge | Add to Inquiry | |
| 28 | 679-44341-00-94 | Housing, Water Pump | Add to Inquiry | |
| 29 | 93101-22M00 | Oil Seal | Add to Inquiry | |
| 30 | 93210-41042 | O-Ring | Add to Inquiry | |
| 30 | 93210-41042 | O-Ring | Add to Inquiry | |
| 31 | 93604-08062 | Pin, Dowel | Add to Inquiry | |
| 32 | 97095-08055 | Bolt | Add to Inquiry | |
| 33 | 92995-08600 | Washer | Add to Inquiry | |
| 34 | 97095-08045 | Bolt | Add to Inquiry | |
| 35 | 92995-08600 | Washer | Add to Inquiry | |
| 36 | Drive Shaft Comp | Add to Inquiry | ||
| 37 | 6H9-45551-00 | Pinion | Add to Inquiry | |
| 38 | 663-45552-00 | Bearing, Plain | Add to Inquiry | |
| 39 | 90170-12138 | Nut | Add to Inquiry | |
| 40 | 679-45560-00 | Gear | Add to Inquiry | |
| 41 | 679-45611-01 | Shaft, Propeller | Add to Inquiry | |
| 42 | 676-45635-00 | Plunger, Shift | Add to Inquiry | |
| 43 | 663-45634-00 | Slide, Shift | Add to Inquiry | |
| 44 | 663-45631-01 | Clutch, Dog | Add to Inquiry | |
| 45 | 90250-06023 | Pin, Straight | Add to Inquiry | |
| 46 | 663-45633-00 | Ring, Cross Pin | Add to Inquiry | |
| 47 | 90201-22429 | Washer, Plate | Add to Inquiry | |
| 48 | 90501-16M01 | Spring, Compression | Add to Inquiry | |
| 49 | 679-45571-00 | Gear | Add to Inquiry | |
| 50 | 679-45331-00-94 | Housing, Bearing | Add to Inquiry | |
| 51 | 93306-00702 | Bearing | Add to Inquiry | |
| 52 | 663-45576-00 | Washer, Thrust | Add to Inquiry | |
| 53 | 93210-66M98 | O-Ring | Add to Inquiry | |
| 54 | 93317-22204 | Bearing | Add to Inquiry | |
| 55 | 90214-48M03 | Washer, Claw | Add to Inquiry | |
| 56 | 697-45384-00 | Nut | Add to Inquiry | |
| 57 | 90282-04010 | Key, Straight | Add to Inquiry | |
| 58 | 679-44150-00 | Shift Cam Assy | Add to Inquiry | |
| 59 | 679-44152-00 | Bushing, Shift Cam | Add to Inquiry | |
| 60 | 650-44147-00 | Boot, Shift Rod | Add to Inquiry | |
