Starter System

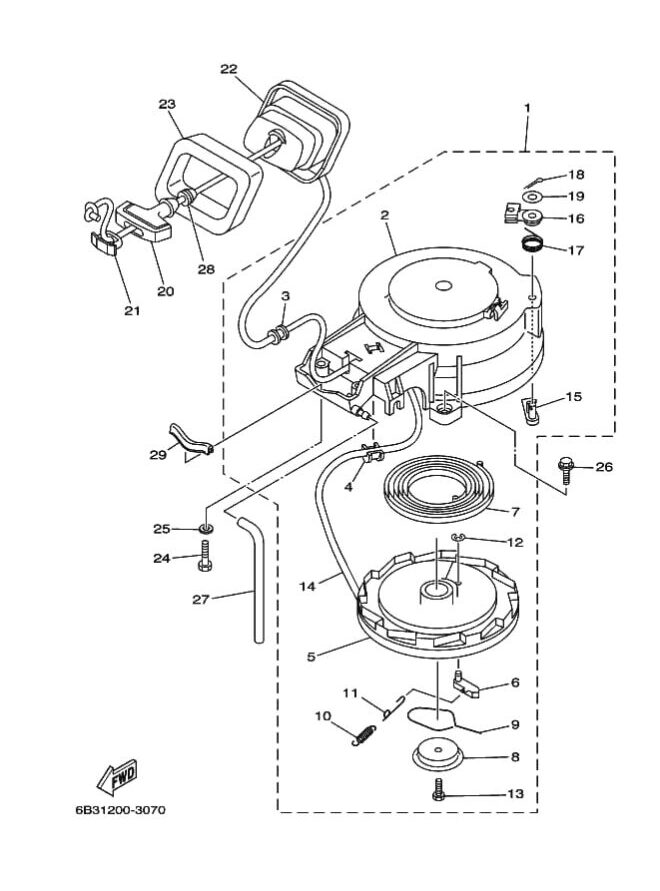

Exploded diagram and parts list for Yamaha 9.9HP Starter System (E9.9D – 2003)
Parts List
| Ref | Part No | Description | Status | Price | |
|---|---|---|---|---|---|
| 1 | 6B4-15710-00 | STARTER ASSY | ₹ — | Add | |
| 2 | 6B4-15711-00 | CASE, STARTER | ₹ — | Add | |
| 3 | 63V-15764-00 | COLLAR 1 | ₹ — | Add | |
| 4 | 68T-15764-00 | COLLAR 1 | ₹ — | Add | |
| 5 | 63V-15714-00 | DRUM, SHEAVE | ₹ — | Add | |
| 6 | 63V-15741-00 | PAWL, DRIVE | ₹ — | Add | |
| 7 | 63V-15713-00 | SPRING, STARTER | ₹ — | Add | |
| 8 | 63V-15716-00 | PLATE, DRIVE | ₹ — | Add | |
| 9 | 63V-15705-01 | SPRING, DRIVE PAWL | ₹ — | Add | |
| 10 | 63V-15767-01 | SPRING | ₹ — | Add | |
| 11 | 68T-15784-00 | SPRING, RETURN | ₹ — | Add | |
| 12 | 63V-15744-00 | CIRCLIP | ₹ — | Add | |
| 13 | 63V-15768-00 | BOLT | ₹ — | Add | |
| 14 | 63V-15751-00 | WIRE, STARTER (L:1800MM) | ₹ — | Add | |
| 15 | 63V-15794-00 | STOPPER | ₹ — | Add | |
| 16 | 63V-15748-00 | PLUNGER, STARTER STOP | ₹ — | Add | |
| 17 | 63V-15734-00 | SPRING, RETURN | ₹ — | Add | |
| 18 | 91490-16018 | PIN, COTTER | ₹ — | Add | |
| 19 | 63V-15726-00 | WASHER, FLAT | ₹ — | Add | |
| 20 | 6G1-15755-00 | HANDLE, STARTER | ₹ — | Add | |
| 21 | 6G1-15779-00 | COVER | ₹ — | Add | |
| 22 | 6B4-15758-00-4D | GUIDE, ROPE | ₹ — | Add | |
| 23 | 6B4-15762-00 | SEAL, RUBBER | ₹ — | Add | |
| 24 | 97095-06030 | BOLT | ₹ — | Add | |
| 25 | 92995-06600 | WASHER | ₹ — | Add | |
| 26 | 90119-06M82 | BOLT, WITH WASHER | ₹ — | Add | |
| 27 | 6J8-24311-00 | PIPE, FUEL | ₹ — | Add | |
| 28 | 6A0-15789-00 | DAMPER | ₹ — | Add | |
| 29 | 6B4-15663-00 | SEAL | ₹ — | Add |
