Starter

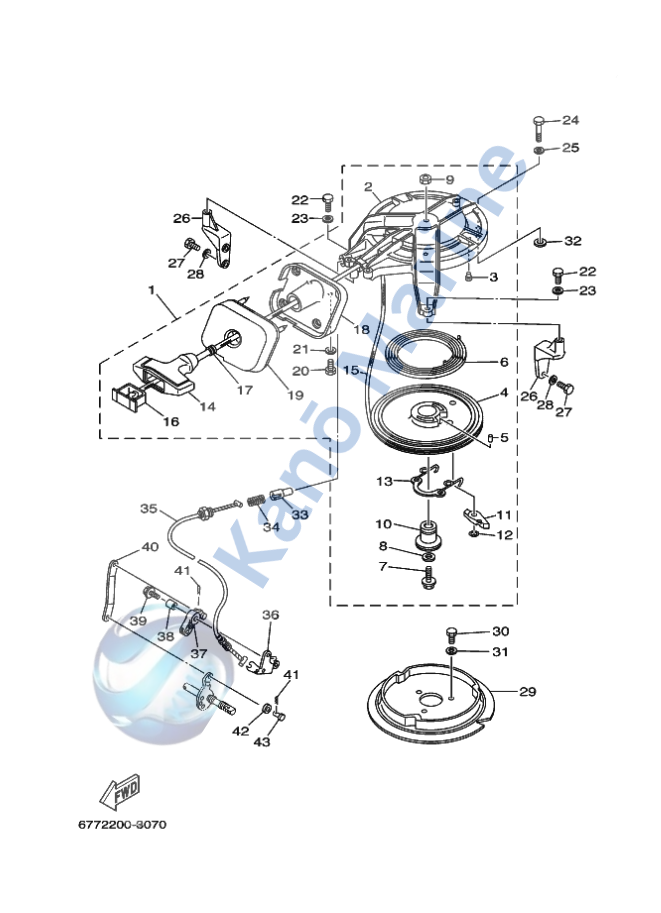

Exploded diagram and parts list for Yamaha 8HP Starter (E8DMHL – 2003)
Parts List
| Ref | Part No | Description | Status | Price | |
|---|---|---|---|---|---|
| 1 | 677-15710-05-94 | Starter Assy | ₹ — | Add | |
| 2 | 682-15711-71-94 | Case, Starter | ₹ — | Add | |
| 3 | 648-15773-00 | Stay | ₹ — | Add | |
| 4 | 677-15714-00-94 | Drum, Sheave | ₹ — | Add | |
| 5 | 91690-40020 | Pin, Spring | ₹ — | Add | |
| 6 | 90510-08M04 | Spring, Spiral | ₹ — | Add | |
| 7 | 90119-06M34 | Bolt, With Washer | ₹ — | Add | |
| 8 | 90201-06060 | Washer, Plate | ₹ — | Add | |
| 9 | 95303-06600 | Nut | ₹ — | Add | |
| 10 | 677-15717-01 | Shaft, Starter | ₹ — | Add | |
| 11 | 677-15741-01 | Pawl, Drive | ₹ — | Add | |
| 12 | 93430-06M02 | Circlip | ₹ — | Add | |
| 13 | 677-15705-02 | Spring, Drive Pawl | ₹ — | Add | |
| 14 | 689-15755-01 | Handle, Starter | ₹ — | Add | |
| 15 | 90580-50M00 | Wire (L1650) | ₹ — | Add | |
| 16 | 6F5-15779-02 | Cover | ₹ — | Add | |
| 17 | 6A0-15789-00 | Damper | ₹ — | Add | |
| 18 | 677-15758-01-94 | Guide, Rope | ₹ — | Add | |
| 19 | 677-15762-00 | Seal, Rubber | ₹ — | Add | |
| 20 | 97095-06016 | Bolt | ₹ — | Add | |
| 21 | 92995-06600 | Washer | ₹ — | Add | |
| 22 | 97095-06020 | Bolt | ₹ — | Add | |
| 23 | 92995-06600 | Washer | ₹ — | Add | |
| 24 | 97095-06035 | Bolt | ₹ — | Add | |
| 25 | 92995-06600 | Washer | ₹ — | Add | |
| 26 | 6K3-15771-00-94 | Stay | ₹ — | Add | |
| 27 | 97095-06018 | Bolt | ₹ — | Add | |
| 28 | 92995-06600 | Washer | ₹ — | Add | |
| 29 | 6E7-15723-00-94 | Pulley, Starter | ₹ — | Add | |
| 30 | 97095-06012 | Bolt | ₹ — | Add | |
| 31 | 92995-06600 | Washer | ₹ — | Add | |
| 32 | 90201-10120 | Washer, Plate | ₹ — | Add | |
| 33 | 656-15748-00 | Plunger, Starter Stop | ₹ — | Add | |
| 34 | 90501-10227 | Spring, Compression | ₹ — | Add | |
| 35 | 677-15770-01 | Cable Comp., Starter Stop | ₹ — | Add | |
| 36 | 677-15772-00 | Stay | ₹ — | Add | |
| 37 | 677-15746-00 | Arm | ₹ — | Add | |
| 38 | 90387-06504 | Collar | ₹ — | Add | |
| 39 | 90119-06M87 | Bolt, With Washer | ₹ — | Add | |
| 40 | 677-15747-00 | Link | ₹ — | Add | |
| 41 | 90468-10005 | Clip | ₹ — | Add | |
| 42 | 90202-05088 | Washer, Plate | ₹ — | Add | |
| 43 | 647-41652-00 | Set Pin | ₹ — | Add |
