Repair Kit 1

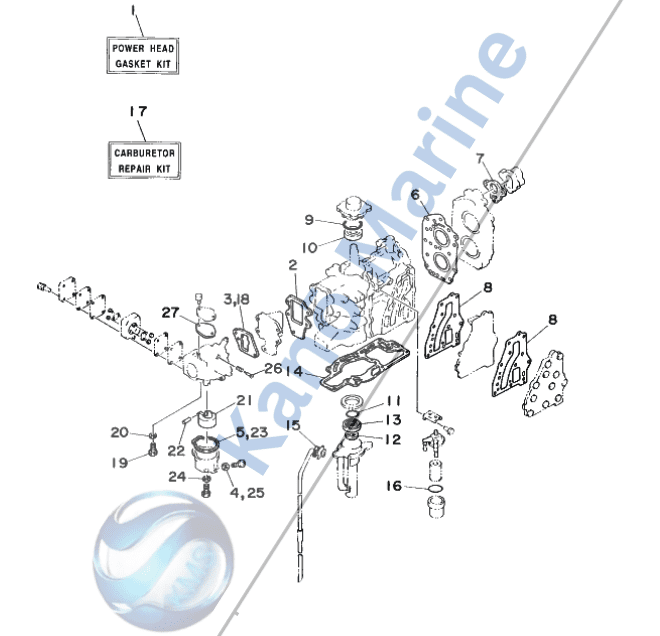

Exploded diagram and parts list for Yamaha 8HP Repair Kit 1 (E8DMHL – 2003)
Parts List
| Ref | Part No | Description | Status | Price | Cart |
|---|---|---|---|---|---|
| 1 | 677-W0001-A2 | Power Head Gasket Kit | ₹ — | Add | |
| 2 | 677-13621-A1 | Gasket, Valve Seat | ₹ — | Add | |
| 3 | 677-14198-A1 | Gasket | ₹ — | Add | |
| 4 | 655-14398-00 | Gasket | ₹ — | Add | |
| 5 | 677-14384-01 | Gasket, Float Chamber | ₹ — | Add | |
| 6 | 677-11181-A1 | Gasket, Cylinder Head | ₹ — | Add | |
| 7 | 677-12414-A1 | Gasket, Cover | ₹ — | Add | |
| 8 | 677-41112-A1 | Gasket, Exhaust Inner Cover | ₹ — | Add | |
| 9 | 93210-42159 | O-Ring | ₹ — | Add | |
| 10 | 93102-20M25 | Oil Seal | ₹ — | Add | |
| 11 | 93210-42M70 | O-Ring | ₹ — | Add | |
| 12 | 93101-14M01 | Oil Seal | ₹ — | Add | |
| 13 | 93101-20M29 | Oil Seal | ₹ — | Add | |
| 14 | 677-45113-A1 | Gasket, Upper Casing | ₹ — | Add | |
| 15 | 655-44365-00 | Damper, Water Seal | ₹ — | Add | |
| 16 | 93210-32738 | O-Ring | ₹ — | Add | |
| 17 | 677-W0093-06 | Carburetor Repair Kit | ₹ — | Add | |
| 18 | 677-14198-A1 | Gasket | ₹ — | Add | |
| 19 | 6E8-14390-12 | Needle Valve Assy | ₹ — | Add | |
| 20 | 367-14195-00 | Gasket | ₹ — | Add | |
| 21 | 6E7-14385-00 | Float | ₹ — | Add | |
| 22 | 647-14386-10 | Pin, Float | ₹ — | Add | |
| 23 | 677-14384-01 | Gasket, Float Chamber | ₹ — | Add | |
| 24 | 1J2-14398-00 | Gasket | ₹ — | Add | |
| 25 | 655-14398-00 | Gasket | ₹ — | Add | |
| 26 | 648-14323-00 | Screw, Air Adjusting | ₹ — | Add | |
| 27 | 677-14227-01 | Gasket | ₹ — | Add |
