Control

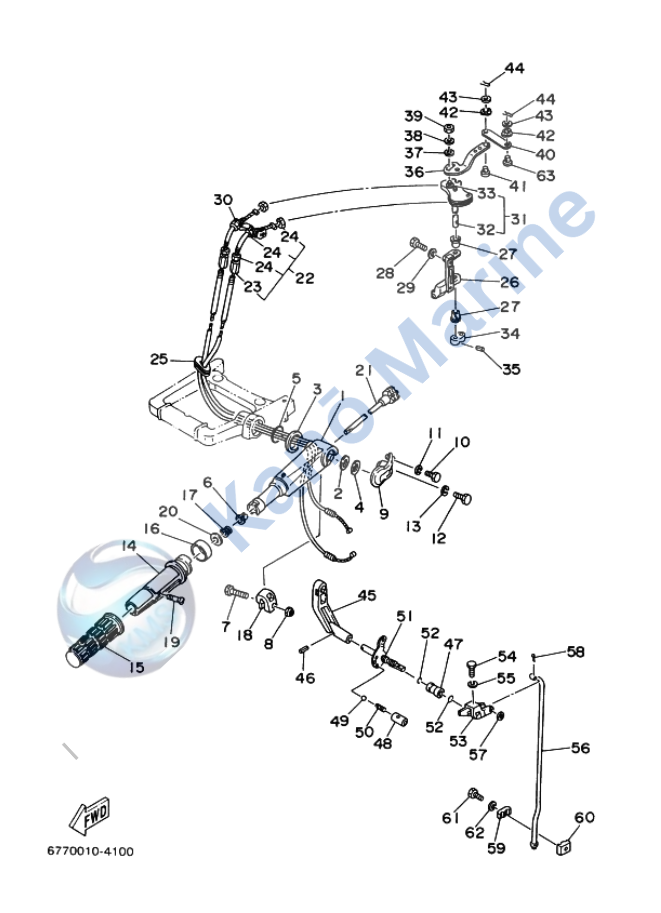

Exploded diagram and parts list for Yamaha 8HP Control (E8DMHL – 2003)
Parts List
| Ref | Part No | Description | Status | Price | |
|---|---|---|---|---|---|
| 1 | 647-42111-02-4D | Handle, Steering | ₹ — | Add | |
| 2 | 90560-12075 | Spacer | ₹ — | Add | |
| 3 | 90560-30085 | Spacer | ₹ — | Add | |
| 4 | 90560-12141 | Spacer | ₹ — | Add | |
| 5 | 93210-25032 | O-Ring | ₹ — | Add | |
| 6 | 90386-08032 | Bush | ₹ — | Add | |
| 7 | 97095-06020 | Bolt | ₹ — | Add | |
| 8 | 90185-06062 | Nut, Self Locking | ₹ — | Add | |
| 9 | 677-42112-00-4D | Handle, Steering | ₹ — | Add | |
| 10 | 97095-06020 | Bolt | ₹ — | Add | |
| 11 | 92995-06600 | Washer | ₹ — | Add | |
| 12 | 97095-06040 | Bolt | ₹ — | Add | |
| 13 | 92995-06600 | Washer | ₹ — | Add | |
| 14 | 647-42119-02 | Grip, Steering Handle | ₹ — | Add | |
| 15 | 647-42177-00 | Rubber, Handle | ₹ — | Add | |
| 16 | 677-42137-10 | Indicator, Throttle | ₹ — | Add | |
| 17 | 90501-23215 | Spring, Compression | ₹ — | Add | |
| 18 | 656-42126-01 | Friction, Steering Handle Grip | ₹ — | Add | |
| 19 | 90149-05M13 | Screw | ₹ — | Add | |
| 20 | 92903-10600 | Washer, Plate | ₹ — | Add | |
| 21 | 655-42138-01 | Lever, Throttle | ₹ — | Add | |
| 22 | 677-26301-02 | Throttle Cable Assy | ₹ — | Add | |
| 23 | 90179-06045 | Nut | ₹ — | Add | |
| 24 | 90170-06011 | Nut | ₹ — | Add | |
| 25 | 90480-16M03 | Grommet | ₹ — | Add | |
| 26 | 677-41661-00-94 | Bracket | ₹ — | Add | |
| 27 | 90386-08032 | Bush | ₹ — | Add | |
| 28 | 97095-06035 | Bolt | ₹ — | Add | |
| 29 | 92995-06600 | Washer | ₹ — | Add | |
| 30 | 655-14497-01 | Stay, Throttle Wire | ₹ — | Add | |
| 31 | 655-41638-01 | Pulley | ₹ — | Add | |
| 32 | 655-41635-00 | Shaft, Link Connecting | ₹ — | Add | |
| 33 | 650-41641-00 | Boss, Lever | ₹ — | Add | |
| 34 | 655-48541-00-4D | Stay | ₹ — | Add | |
| 35 | 90254-03003 | Pin, Spring | ₹ — | Add | |
| 36 | 677-41631-00 | Lever, Magneto Control | ₹ — | Add | |
| 37 | 92990-06600 | Washer, Plate | ₹ — | Add | |
| 38 | 92990-06100 | Washer, Spring | ₹ — | Add | |
| 39 | 95380-06600 | Nut, Hexagon | ₹ — | Add | |
| 40 | 677-41632-00 | Lever, Magneto Control | ₹ — | Add | |
| 41 | 647-41652-00 | Set Pin | ₹ — | Add | |
| 42 | 90206-05005 | Washer, Wave | ₹ — | Add | |
| 43 | 92990-05200 | Washer, Plain | ₹ — | Add | |
| 44 | 90468-10005 | Clip | ₹ — | Add | |
| 45 | 655-44111-02-4D | Handle, Gear Shift | ₹ — | Add | |
| 46 | 91690-40016 | Pin, Spring | ₹ — | Add | |
| 47 | 655-44122-03 | Bushing, Shift Rod Lever | ₹ — | Add | |
| 48 | 655-42715-00 | Bushing | ₹ — | Add | |
| 49 | 93505-16024 | Ball | ₹ — | Add | |
| 50 | 90501-12274 | Spring, Compression | ₹ — | Add | |
| 51 | 677-44119-00 | Shaft, Change | ₹ — | Add | |
| 52 | 93210-09165 | O-Ring | ₹ — | Add | |
| 53 | 655-44121-01 | Lever, Shift Rod | ₹ — | Add | |
| 54 | 97090-05020 | Bolt | ₹ — | Add | |
| 55 | 92990-05100 | Washer, Spring | ₹ — | Add | |
| 56 | 655-44143-01 | Rod, Shift | ₹ — | Add | |
| 57 | 92990-06200 | Washer, Plain | ₹ — | Add | |
| 58 | 91490-16010 | Pin, Cotter | ₹ — | Add | |
| 59 | 616-44145-01 | Connector, Shift Rod | ₹ — | Add | |
| 60 | 616-44146-01 | Connector, Shift Rod | ₹ — | Add | |
| 61 | 97095-06020 | Bolt | ₹ — | Add | |
| 62 | 92995-06600 | Washer | ₹ — | Add | |
| 63 | 90240-05004 | Pin, Clevis | ₹ — | Add |
