Starter System

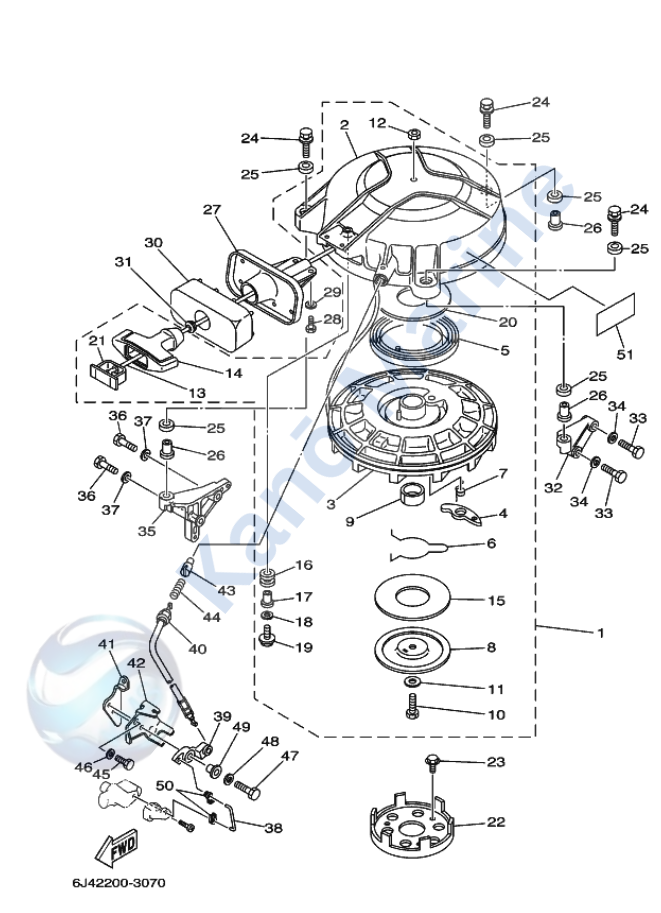

Exploded diagram and parts list for Yamaha 40HP Starter System (E40GMHL – 2003)
Parts List
| Ref | Part No | Description | Status | Price | CART |
|---|---|---|---|---|---|
| 1 | 6F5-W1571-02 | Starter Assy | ₹ — | Add | |
| 2 | 6F5-15711-01 | Case, Starter | ₹ — | Add | |
| 3 | 6F5-15714-03 | Drum, Sheave | ₹ — | Add | |
| 4 | 6F5-15741-01 | Pawl, Drive | ₹ — | Add | |
| 5 | 6F5-15713-00 | Spring, Starter | ₹ — | Add | |
| 6 | 6F5-15715-00 | Spring, Friction | ₹ — | Add | |
| 7 | 6F5-15734-01 | Spring, Return | ₹ — | Add | |
| 8 | 6F5-15716-01 | Plate, Drive | ₹ — | Add | |
| 9 | 6F5-15754-00 | Bush | ₹ — | Add | |
| 10 | 97013-08030 | Bolt | ₹ — | Add | |
| 11 | 6F5-15726-01 | Washer, Flat | ₹ — | Add | |
| 12 | 95303-08700 | Nut | ₹ — | Add | |
| 13 | 6F5-15751-00 | Wire (L:1900MM) | ₹ — | Add | |
| 14 | 689-15755-01 | Handle, Starter | ₹ — | Add | |
| 15 | 6F5-15764-00 | Collar | ₹ — | Add | |
| 16 | 6F5-15752-00 | Roller, Wire | ₹ — | Add | |
| 17 | 6F5-15753-00 | Bush | ₹ — | Add | |
| 18 | 6F5-15791-00 | Washer, Lock | ₹ — | Add | |
| 19 | 6F5-15768-00 | Bolt | ₹ — | Add | |
| 20 | 6F5-15739-00 | Washer, Thrust | ₹ — | Add | |
| 21 | 6F5-15779-02 | Cover | ₹ — | Add | |
| 22 | 6F5-15723-01 | Pulley, Starter | ₹ — | Add | |
| 23 | 90105-08M10 | Bolt, Flange | ₹ — | Add | |
| 24 | 90119-08M10 | Bolt, With Washer | ₹ — | Add | |
| 25 | 90385-12M04 | Bush | ₹ — | Add | |
| 26 | 90387-08M05 | Collar | ₹ — | Add | |
| 27 | 6A0-15758-01-94 | Guide, Rope | ₹ — | Add | |
| 28 | 97095-06016 | Bolt | ₹ — | Add | |
| 29 | 92995-06600 | Washer | ₹ — | Add | |
| 30 | 6A0-15762-00 | Seal, Rubber | ₹ — | Add | |
| 31 | 6A0-15789-00 | Damper | ₹ — | Add | |
| 32 | 6F5-15771-00-94 | Stay | ₹ — | Add | |
| 33 | 97013-08035 | Bolt | ₹ — | Add | |
| 34 | 92903-08600 | Washer, Plate | ₹ — | Add | |
| 35 | 6F5-15772-00-94 | Stay | ₹ — | Add | |
| 36 | 97013-08035 | Bolt | ₹ — | Add | |
| 37 | 92903-08600 | Washer, Plate | ₹ — | Add | |
| 38 | 6F5-15747-00 | Link | ₹ — | Add | |
| 39 | 6F5-15746-00 | Arm | ₹ — | Add | |
| 40 | 6F5-15770-00 | Cable Comp., Starter Stop | ₹ — | Add | |
| 41 | 6F5-15773-00 | Stay | ₹ — | Add | |
| 42 | 6F5-15774-00 | Stay | ₹ — | Add | |
| 43 | 656-15748-00 | Plunger, Starter Stop | ₹ — | Add | |
| 44 | 90501-10227 | Spring, Compression | ₹ — | Add | |
| 45 | 97095-06016 | Bolt | ₹ — | Add | |
| 46 | 92995-06600 | Washer | ₹ — | Add | |
| 47 | 97095-06030 | Bolt | ₹ — | Add | |
| 48 | 92995-06600 | Washer | ₹ — | Add | |
| 49 | 90387-06M29 | Collar | ₹ — | Add | |
| 50 | 661-41262-02 | Joint, Choke Lever | ₹ — | Add | |
| 51 | 6F6-14488-00 | Label, Caution | ₹ — | Add |
