Fuel System

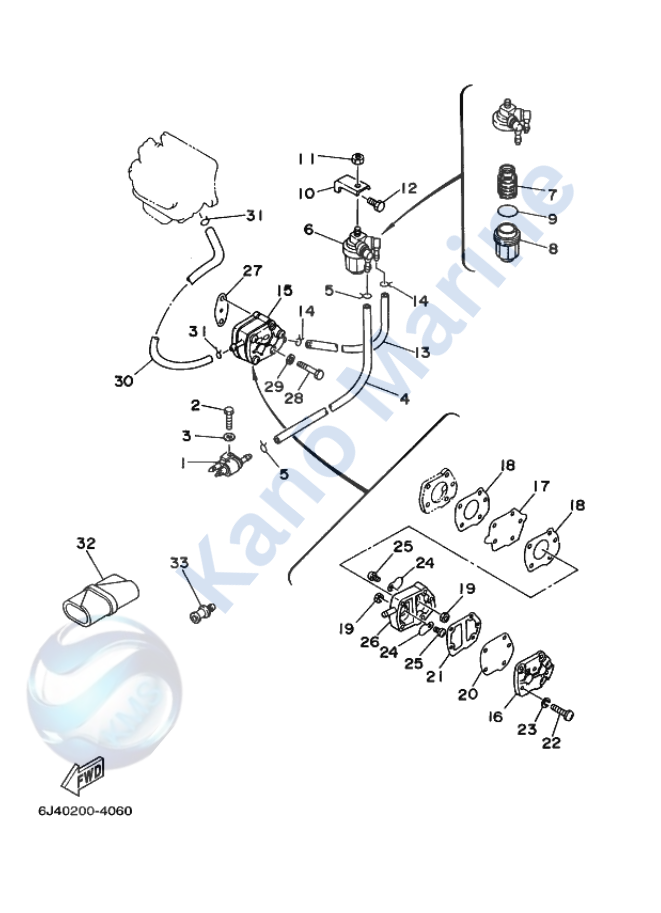

Exploded diagram and parts list for Yamaha 40HP Fuel System (E40GMHL – 2003)
Parts List
| Ref | Part No | Description | Status | Price | CART |
|---|---|---|---|---|---|
| 1 | 6G1-24304-02 | Fuel Pipe Joint Comp. | ₹ — | Add | |
| 2 | 97095-06025 | Bolt | ₹ — | Add | |
| 3 | 92995-06600 | Washer | ₹ — | Add | |
| 4 | 90445-09226 | Hose (L390) | ₹ — | Add | |
| 5 | 90467-08004 | Clip | ₹ — | Add | |
| 6 | 61N-24560-00 | Filter Assy | ₹ — | Add | |
| 7 | 61N-24563-00 | Element, Filter | ₹ — | Add | |
| 8 | 61N-24521-00 | Cup, Filter | ₹ — | Add | |
| 9 | 93210-32738 | O-Ring | ₹ — | Add | |
| 10 | 648-24566-02 | Bracket, Filter | ₹ — | Add | |
| 11 | 95380-08600 | Nut | ₹ — | Add | |
| 12 | 97013-06014 | Bolt | ₹ — | Add | |
| 13 | 90445-09090 | Hose | ₹ — | Add | |
| 14 | 90467-08004 | Clip | ₹ — | Add | |
| 15 | 692-24410-00 | Fuel Pump Assy | ₹ — | Add | |
| 16 | 6A0-24413-00 | Body | ₹ — | Add | |
| 17 | 692-24411-00 | Diaphragm | ₹ — | Add | |
| 18 | 648-24434-01 | Gasket, Body | ₹ — | Add | |
| 19 | 95380-03600 | Nut | ₹ — | Add | |
| 20 | 663-24411-00 | Diaphragm | ₹ — | Add | |
| 21 | 648-24435-02 | Gasket, Body | ₹ — | Add | |
| 22 | 98503-05028 | Screw, Pan Head | ₹ — | Add | |
| 23 | 92990-05100 | Washer, Spring | ₹ — | Add | |
| 24 | 6A0-24421-01 | Valve, Check | ₹ — | Add | |
| 25 | 6A0-14325-00 | Screw, Pan Head | ₹ — | Add | |
| 26 | 6A0-24412-02 | Body | ₹ — | Add | |
| 27 | 650-24431-A0 | Gasket, Fuel Pump | ₹ — | Add | |
| 28 | 97095-06040 | Bolt | ₹ — | Add | |
| 29 | 92995-06600 | Washer | ₹ — | Add | |
| 30 | 90445-09090 | Hose | ₹ — | Add | |
| 31 | 90467-08004 | Clip | ₹ — | Add | |
| 32 | 676-W2810-01 | Tool Kit | ₹ — | Add | |
| 33 | 626-28193-01-94 | Plug, Water Check | ₹ — | Add |
