Electrical (3)

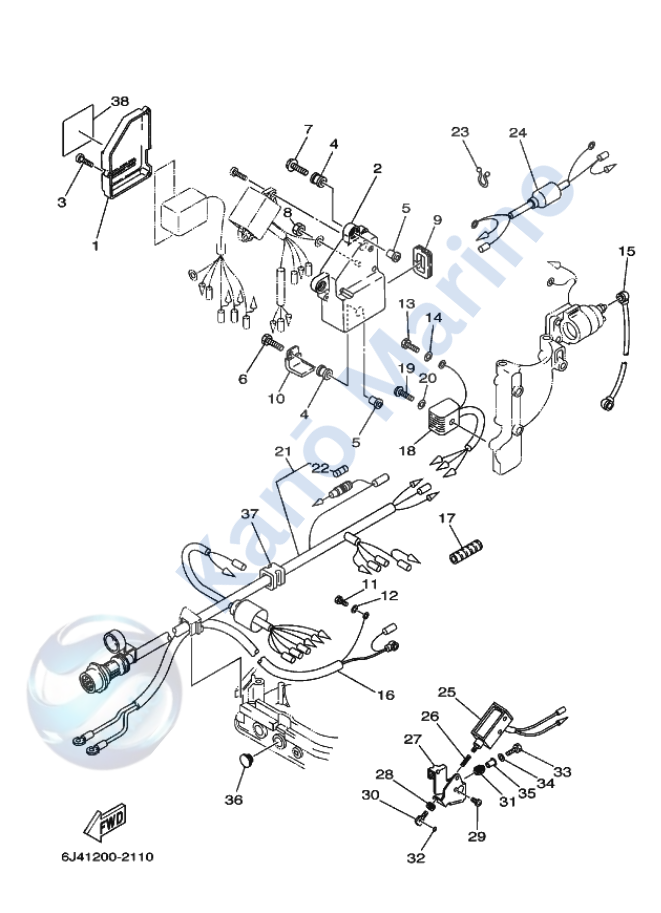

Exploded diagram and parts list for Yamaha 40HP Electrical (3) (E40GMHL)
Parts List
| Ref | Part No | Description | Status | Price | CART |
|---|---|---|---|---|---|
| 1 | 6F5-81916-40 | Cover, Terminal | ₹ — | Add | |
| 2 | 6F5-85542-40 | Bracket | ₹ — | Add | |
| 3 | 90164-05M00 | Screw, Tapping | ₹ — | Add | |
| 4 | 6A0-82317-00 | Damper, Ignition Coil | ₹ — | Add | |
| 5 | 624-42542-00 | Pipe | ₹ — | Add | |
| 6 | 97095-06025 | Bolt | ₹ — | Add | |
| 7 | 90119-06M88 | Bolt, With Washer | ₹ — | Add | |
| 8 | 95380-06600 | Nut, Hexagon | ₹ — | Add | |
| 9 | 6F5-81922-40 | Grommet | ₹ — | Add | |
| 10 | 90465-06M16 | Clamp | ₹ — | Add | |
| 11 | 97095-08016 | Bolt | ₹ — | Add | |
| 12 | 92995-08100 | Washer | ₹ — | Add | |
| 13 | 97013-06016 | Bolt | ₹ — | Add | |
| 14 | 92903-06600 | Washer, Plate | ₹ — | Add | |
| 15 | 6F5-82117-00 | Wire, Lead | ₹ — | Add | |
| 16 | 6F5-82105-00 | Wire Harness | ₹ — | Add | |
| 17 | 90446-10M02 | Hose | ₹ — | Add | |
| 18 | 6F5-81970-61 | Rectifier Assy | ₹ — | Add | |
| 19 | 97880-05025 | Screw, Pan Head | ₹ — | Add | |
| 20 | 92990-05600 | Washer, Plate | ₹ — | Add | |
| 21 | 6J4-82590-00 | Wire Harness Assy | ₹ — | Add | |
| 22 | 663-82151-00 | Fuse (12V-20A) | ₹ — | Add | |
| 23 | 90465-18147 | Clamp | ₹ — | Add | |
| 24 | 6F5-82519-10 | Wire, Earth Lead | ₹ — | Add | |
| 25 | 6J4-86111-00 | Coil, Solenoid | ₹ — | Add | |
| 26 | 6J4-86116-00 | Wire, Pull | ₹ — | Add | |
| 27 | 6J4-86112-00 | Stay, Solenoid | ₹ — | Add | |
| 28 | 90480-10M55 | Grommet | ₹ — | Add | |
| 29 | 97880-05008 | Screw, Pan Head | ₹ — | Add | |
| 30 | 682-86117-00 | Hook, Wire Pull | ₹ — | Add | |
| 31 | 93210-03261 | O-Ring | ₹ — | Add | |
| 32 | 90480-17165 | Grommet | ₹ — | Add | |
| 33 | 97095-06025 | Bolt | ₹ — | Add | |
| 34 | 92995-06600 | Washer | ₹ — | Add | |
| 35 | 624-42542-00 | Pipe | ₹ — | Add | |
| 36 | 90480-10M55 | Grommet | ₹ — | Add | |
| 37 | 6F5-83622-60 | Mark 2 | ₹ — | Add | |
| 38 | 90480-17M08 | Grommet | ₹ — | Add |
