Cylinder & Crankcase

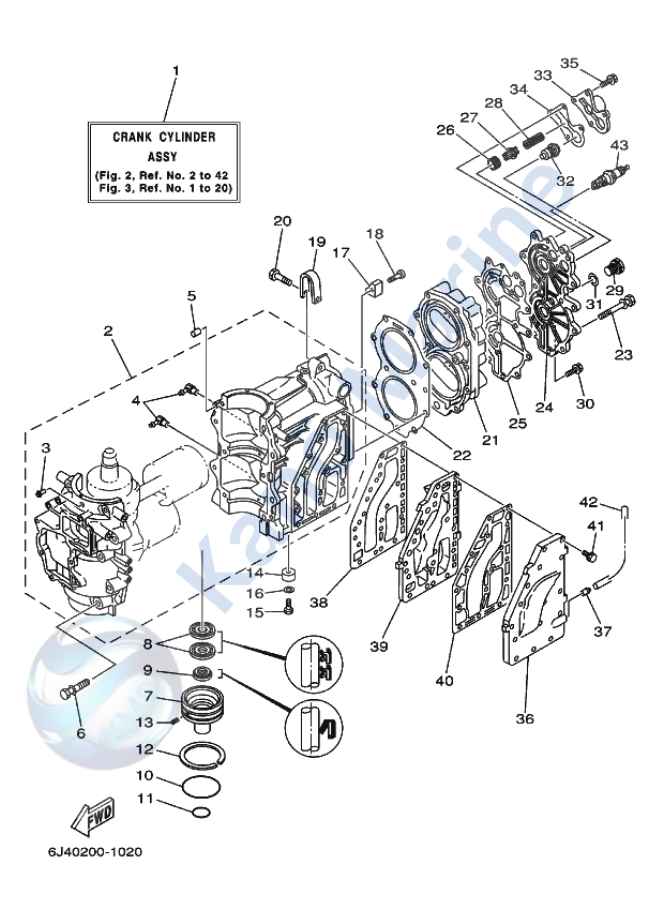

Exploded diagram and parts list for Yamaha 40HP Cylinder & Crankcase (E40GMHL – 2003)

Use zoom controls to inspect part numbers

Parts List

Ref	Part No	Description	Price	CART
1	6F6-W0090-04-1S	Crank Cylinder Assy	₹ —	Add
2	6F6-15100-00-1S	Crankcase Assy	₹ —	Add
3	624-14485-00	Pipe, Joint	₹ —	Add
4	650-11370-01	Check Valve Assy	₹ —	Add
5	93608-12063	Pin, Dowel	₹ —	Add
6	90119-10005	Bolt, With Washer	₹ —	Add
7	6F5-15396-01-5B	Housing, Oil Seal	₹ —	Add
8	93101-30M33	Oil Seal	₹ —	Add
9	93104-16M01	Oil Seal	₹ —	Add
10	93210-65M50	O-Ring	₹ —	Add
11	93210-22M02	O-Ring	₹ —	Add
12	93440-68M03	Circlip	₹ —	Add
13	91690-30010	Pin, Spring	₹ —	Add
14	676-45251-00	Anode	₹ —	Add
15	97095-06016	Bolt	₹ —	Add
16	92995-06600	Washer	₹ —	Add
17	676-11325-00	Anode	₹ —	Add
18	90141-06M00	Screw, Countersunk	₹ —	Add
19	6F5-11119-00	Hanger, Engine	₹ —	Add
20	90101-08001	Bolt	₹ —	Add
21	6F6-11111-00-1S	Head, Cylinder	₹ —	Add
22	6F5-11181-A1	Gasket, Cylinder Head	₹ —	Add
23	90119-08MA5	Bolt, With Washer	₹ —	Add
24	6F6-11191-00-1S	Cover, Cylinder Head	₹ —	Add
25	6F6-11193-A1	Gasket, Head Cover	₹ —	Add
26	90480-18065	Grommet	₹ —	Add
27	663-12416-00	Valve, Pressure Control	₹ —	Add
28	90501-14M02	Spring, Compression	₹ —	Add
29	90340-14036	Plug, Straight Screw	₹ —	Add
30	90119-06MA3	Bolt, With Washer	₹ —	Add
31	90430-14115	Gasket	₹ —	Add
32	6F5-12411-02	Thermostat	₹ —	Add
33	6E9-12413-00-1S	Cover, Thermostat	₹ —	Add
34	6E9-12414-A1	Gasket, Cover	₹ —	Add
35	90119-06MA4	Bolt, With Washer	₹ —	Add
36	6F5-41113-01-1S	Outer Cover, Exhaust	₹ —	Add
37	650-24378-00	Pipe, Joint	₹ —	Add
38	6F5-41112-A0	Gasket, Exhaust Inner Cover	₹ —	Add
