Bracket (2)

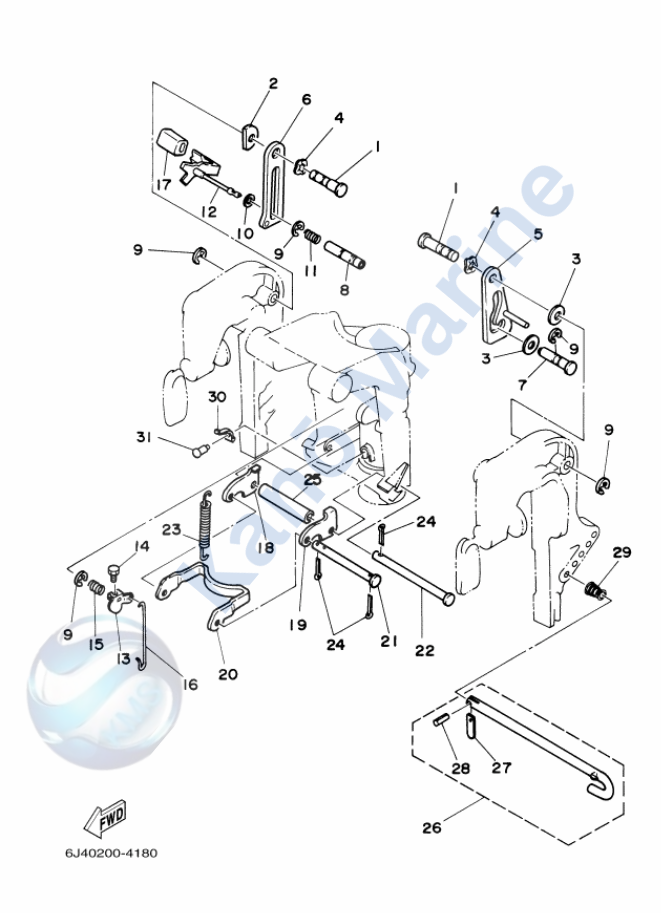

Exploded diagram and parts list for Yamaha 40HP Bracket (2) (E40GMHL – 2003)
Parts List
| Ref | Part No | Description | Status | Price | CART |
|---|---|---|---|---|---|
| 1 | 90249-12M27 | Pin | ₹ — | Add | |
| 2 | 676-43132-00 | Washer, Friction | ₹ — | Add | |
| 3 | 90202-12M01 | Washer, Plate | ₹ — | Add | |
| 4 | 90206-12M00 | Washer, Wave | ₹ — | Add | |
| 5 | 6F5-43627-80 | Stopper | ₹ — | Add | |
| 6 | 6F5-43628-80 | Stopper | ₹ — | Add | |
| 7 | 90249-12M13 | Pin | ₹ — | Add | |
| 8 | 676-43191-00 | Shaft, Stopper | ₹ — | Add | |
| 9 | 93430-10M00 | Circlip | ₹ — | Add | |
| 10 | 90202-06M00 | Washer, Plate | ₹ — | Add | |
| 11 | 90501-14M05 | Spring, Compression | ₹ — | Add | |
| 12 | 6F5-43630-80 | Tilt Lever Assy | ₹ — | Add | |
| 13 | 676-43631-00 | Lever, Tilt | ₹ — | Add | |
| 14 | 97095-05010 | Bolt | ₹ — | Add | |
| 15 | 90508-14M00 | Spring, Torsion | ₹ — | Add | |
| 16 | 676-43616-00 | Rod, Tilt Lock | ₹ — | Add | |
| 17 | 663-43318-00 | Cover | ₹ — | Add | |
| 18 | 676-43614-00 | Plate, Tilt Lock | ₹ — | Add | |
| 19 | 676-43615-00 | Plate, Tilt Lock | ₹ — | Add | |
| 20 | 676-43613-00 | Arm, Tilt Lock | ₹ — | Add | |
| 21 | 90249-07M01 | Pin | ₹ — | Add | |
| 22 | 90249-07M02 | Pin | ₹ — | Add | |
| 23 | 90506-30M00 | Spring, Tension | ₹ — | Add | |
| 24 | 91490-20012 | Pin, Cotter | ₹ — | Add | |
| 25 | 90387-07M04 | Collar | ₹ — | Add | |
| 26 | 676-43160-02 | Tilt Rod Assy | ₹ — | Add | |
| 27 | 676-43165-00 | Plate, Tilt Lock | ₹ — | Add | |
| 28 | 91690-30010 | Pin, Spring | ₹ — | Add | |
| 29 | 90502-10M04 | Spring, Conical | ₹ — | Add | |
| 30 | 676-43643-00 | Spring | ₹ — | Add | |
| 31 | 90269-04M00 | Rivet | ₹ — | Add |
