Tiller Handle

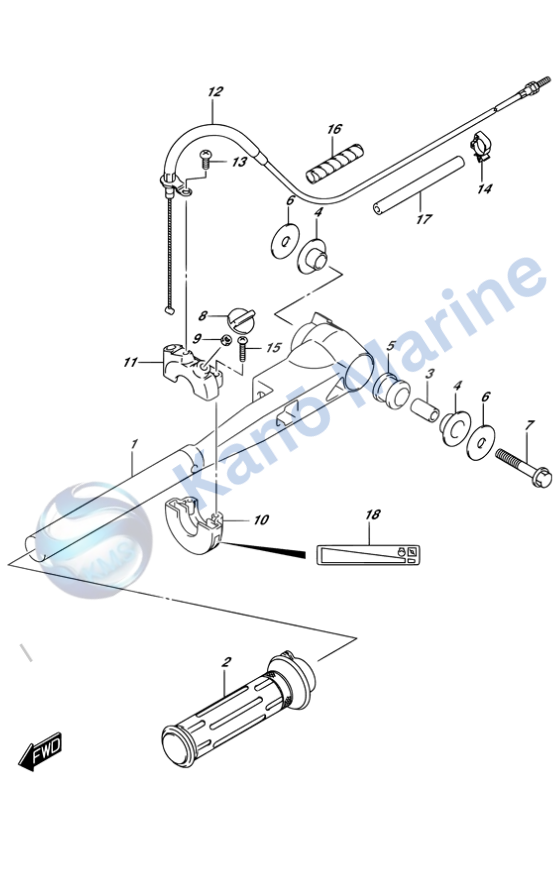

Exploded diagram and parts list for Suzuki DF2.5 Tiller Handle
| Ref | Part No. | Description | Stock | Price | Cart |
|---|---|---|---|---|---|
| 1 | 63111-97J20-0EP | Handle, Tiller (Black) | ₹ — | Add | |
| 2 | 63210-97J00 | Grip, Throttle | ₹ — | Add | |
| 3 | 59181-97J00 | Spacer, Tiller Handle | ₹ — | Add | |
| 4 | 59315-97J00 | Bush, Tiller Handle | ₹ — | Add | |
| 5 | 63116-97J00 | Mount, Tiller Handle | ₹ — | Add | |
| 6 | 09160-08152 | Washer (8.5×28×1.5) | ₹ — | Add | |
| 7 | 09116-08154 | Bolt (8×40) | ₹ — | Add | |
| 8 | 63244-97J00 | Knob, Throttle Adjust | ₹ — | Add | |
| 9 | 09140-05005 | Nut | ₹ — | Add | |
| 10 | 57121-09G00 | Case, Throttle Upper | ₹ — | Add | |
| 11 | 67821-97J00 | Case, Throttle Lower | ₹ — | Add | |
| 12 | 63610-97J00 | Cable Assy, Throttle | ₹ — | Add | |
| 13 | 02112-05127 | Screw | ₹ — | Add | |
| 14 | 23915-78A20 | Clamp, Throttle Cable | ₹ — | Add | |
| 15 | 59125-97J00 | Screw, Throttle Cable | ₹ — | Add | |
| 16 | 33833-91J00 | Tube, Throttle Cable (6×8×250) | ₹ — | Add | |
| 17 | 09352-90133-600 | Hose (9×13×600) | ₹ — | Add | |
| 18 | 69714-97J01 | Mark, Handle Grip | ₹ — | Add |
