Swivel Bracket

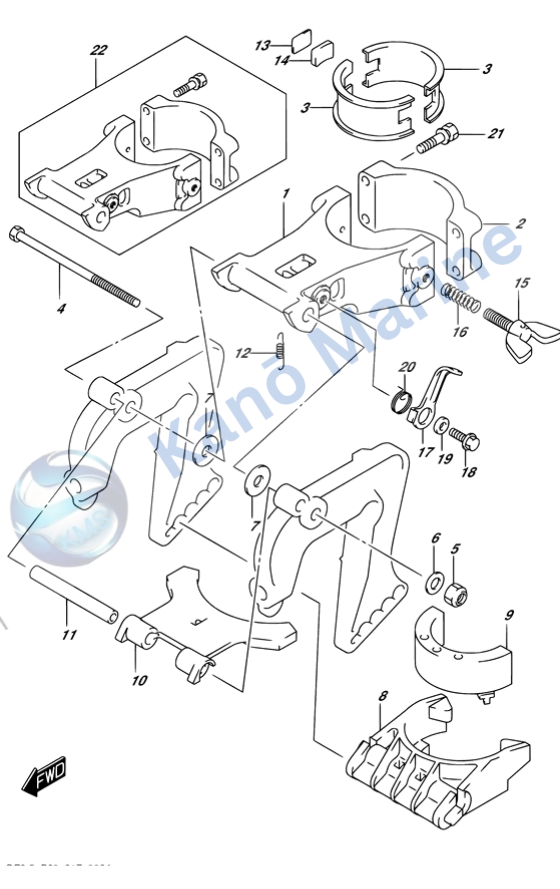

Exploded diagram and parts list for Suzuki DF2.5 Swivel Bracket
Parts List
| Ref | Part No | Description | Status | Price | |
|---|---|---|---|---|---|
| 1 | 43111-97J30-0EP | Bracket, Swivel (Black) | ₹ — | Add | |
| 2 | 43121-97J30-0EP | Cover, Swivel Bracket (Black) | ₹ — | Add | |
| 3 | 43711-97J00 | Bush, Steering Upper | ₹ — | Add | |
| 4 | 59111-97JL0 | Bolt, Swivel Shaft | ₹ — | Add | |
| 5 | 09159-08018 | Nut | ₹ — | Add | |
| 6 | 09160-08091 | Washer (8.5×14×1.0) | ₹ — | Add | |
| 7 | 09160-08081 | Washer (8.5×23×1.5) | ₹ — | Add | |
| 8 | 45411-97J00 | Block, Thrust | ₹ — | Add | |
| 9 | 54151-97JL0 | Mount, Lower Thrust | ₹ — | Add | |
| 10 | 43751-97J01 | Bracket, Stopper | ₹ — | Add | |
| 11 | 43752-97J00 | Shaft, Stopper | ₹ — | Add | |
| 12 | 59443-97J00 | Spring, Stopper | ₹ — | Add | |
| 13 | 43415-97J10 | Plate, Steering Adjuster | ₹ — | Add | |
| 14 | 43416-97J10 | Rubber, Steering Adjuster | ₹ — | Add | |
| 15 | 09119-06130 | Bolt | ₹ — | Add | |
| 16 | 09440-09042 | Spring | ₹ — | Add | |
| 17 | 41221-97JL0 | Lever, Tilt Lock | ₹ — | Add | |
| 18 | 09116-06224 | Bolt (6×12) | ₹ — | Add | |
| 19 | 59181-97J10 | Spacer, Tilt Lock Lever | ₹ — | Add | |
| 20 | 59444-97J10 | Spring, Tilt Lock | ₹ — | Add | |
| 21 | 09116-06232 | Bolt (6×30) | ₹ — | Add | |
| 22 | 43110-97J30-0EP | Bracket Assy, Swivel (Black) | ₹ — | Add |
