Magneto

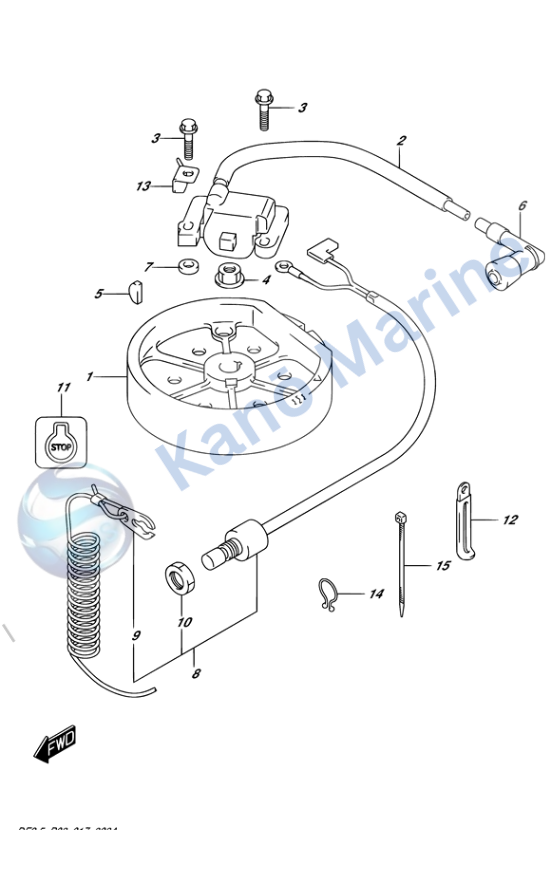

Exploded diagram and parts list for Suzuki DF2.5 Magneto
Parts List
| Ref | Part No | Description | Status | Price | |
|---|---|---|---|---|---|
| 1 | 32102-97J10 | Flywheel | ₹ — | Add | |
| 2 | 33410-97J31 | Unit, Igniter | ₹ — | Add | |
| 3 | 01550-06307 | Bolt | ₹ — | Add | |
| 4 | 08316-10107 | Nut | ₹ — | Add | |
| 5 | 08341-31039 | Key | ₹ — | Add | |
| 6 | 33500-07H00 | Cap, Spark Plug | ₹ — | Add | |
| 7 | 09180-06363 | Spacer (6.2×12.6×6) | ₹ — | Add | |
| 8 | 37830-97J21 | Switch Assy, Emergency | ₹ — | Add | |
| 9 | 37823-97J00 | Plate, Lock | ₹ — | Add | |
| 10 | 37826-97J00 | Nut | ₹ — | Add | |
| 11 | 37835-95D00 | Label, Stop | ₹ — | Add | |
| 12 | 29404-93J10 | Clamp (L:65) | ₹ — | Add | |
| 13 | 19183-97J01 | Holder, Throttle Cable | ₹ — | Add |
