Gear Case

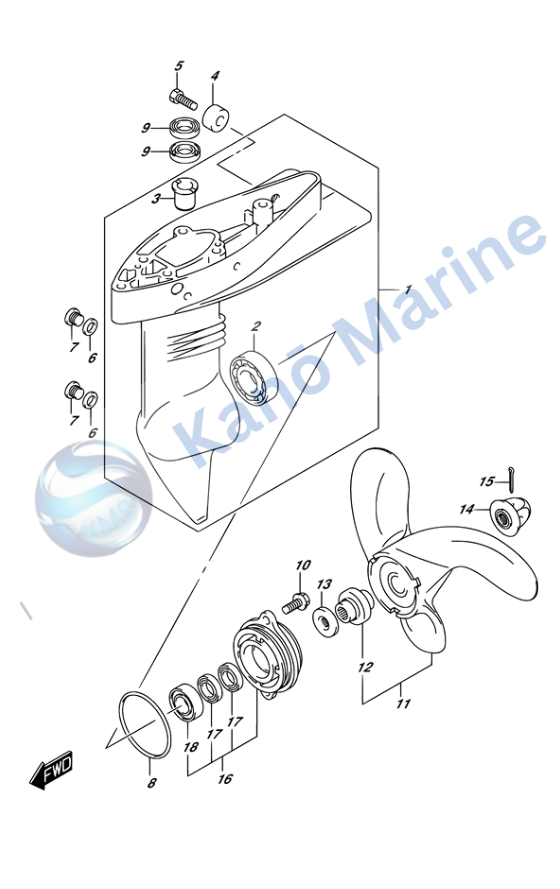

Exploded diagram and parts list for Suzuki DF2.5 Gear Case
| Ref | Part No. | Description | Stock | Price | CART |
|---|---|---|---|---|---|
| 1 | 55110-97J51-0EP | Case, Gear (Black) | ₹ — | Add | |
| 2 | 09262-17019 | Bearing (17×35×8) | ₹ — | Add | |
| 3 | 59311-97J20 | Bush, Pinion | ₹ — | Add | |
| 4 | 55321-87J01 | Anode, Protection | ₹ — | Add | |
| 5 | 09103-06281 | Bolt (6×14) | ₹ — | Add | |
| 6 | 59178-97J00 | Gasket, Drain Plug | ₹ — | Add | |
| 7 | 09248-08001 | Plug (8×7.5) | ₹ — | Add | |
| 8 | 59291-97J00 | O-Ring, Prop Shaft Bearing Housing | ₹ — | Add | |
| 9 | 09282-10008 | Oil Seal (10×21×4.5) | ₹ — | Add | |
| 10 | 09116-06225 | Bolt (6×15) | ₹ — | Add | |
| 11 | 58110-97JA0-019 | Propeller (3×7-3/8×5-3/8) | ₹ — | Add | |
| 12 | 58120-97JA0 | Bush, Propeller | ₹ — | Add | |
| 13 | 57635-91JL0 | Stopper, Propeller Bush | ₹ — | Add | |
| 14 | 58130-91JL0 | Nut, Propeller | ₹ — | Add | |
| 15 | 09204-03003 | Cotter Pin (3.6×25) | ₹ — | Add | |
| 16 | 56120-97J50-0EP | Housing, Prop Shaft Bearing (Black) | ₹ — | Add | |
| 17 | 09282-12L05 | Oil Seal (12×24×4.5) | ₹ — | Add | |
| 18 | 09262-12001 | Bearing (12×28×8) | ₹ — | Add |
